Cutler-Hammer Series UHTRS223ACH

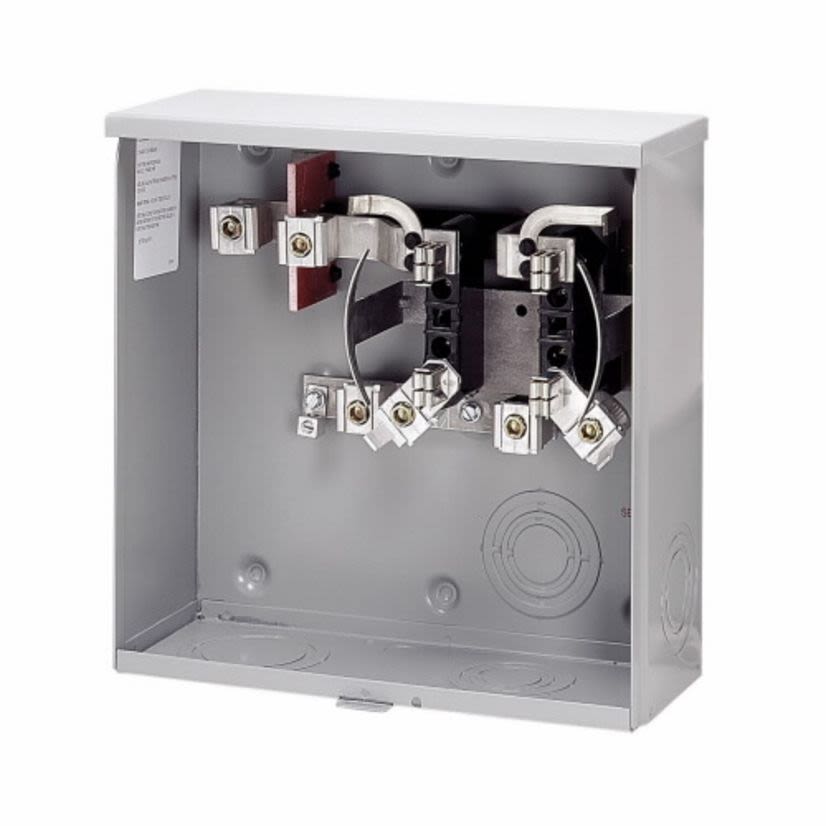

EATON UHTRS223ACH 1-Position Horn Bypass Triplex Ground Meter Socket, 600 V AC, 200 A, 1 Phase
Cutler-Hammer Series UHTRS223ACH
EATON UHTRS223ACH 1-Position Horn Bypass Triplex Ground Meter Socket, 600 V AC, 200 A, 1 PhaseNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #UHTRS223ACH
Werner Part #553191
UPC782114113905
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #UHTRS223ACH
Werner Part #553191
UPC782114113905
Product Description
EATON Meter Socket, 1-Position Horn Bypass Triplex Ground, 600 V AC, 200 A, 1 ph, Bottom/Underground Feed, 4 Jaws, 8 AWG to 350 kcmil Wire, Solid Top, Ringless Cover, Line/Load Terminal, Surface Mount, 4.94 in L x 13 in W x 13 in H
Attributes
Documents
Applications
Features
Attributes
Country of OriginUS
Dimensions4.94 in L x 13 in W x 13 in H
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypePlug-In
Number of Poles2
Phase1
Size of Wire8 to 3 AWG
Terminal TypeLine/Load
Trip TypeInternal Common
Type1-Position Horn Bypass Triplex Ground
Type / Style1-Position Horn Bypass Triplex Ground
Voltage600 VAC
Documents
Applications
Residential Buildings and Facilities, Power Distribution and Residential Applications
Features
- Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
- One-piece, die-run enclosure eliminates tampering and extends product life
- High visibility EATON name embossed on cover
- Knockouts are installer friendly, labor savings, less time needed for removing knockouts
- Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
- Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
- Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
- One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
- 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
- Rating up to 200 kA interrupt rating with specified overcurrent protection devices
- Provides a complete EATON residential solution
- Copper plated alloy jaws with reinforcing spring
- Steel reinforcing springs used in all socket jaws to maintain electrical connections
