Cutler-Hammer Series UHT2R2332TCH

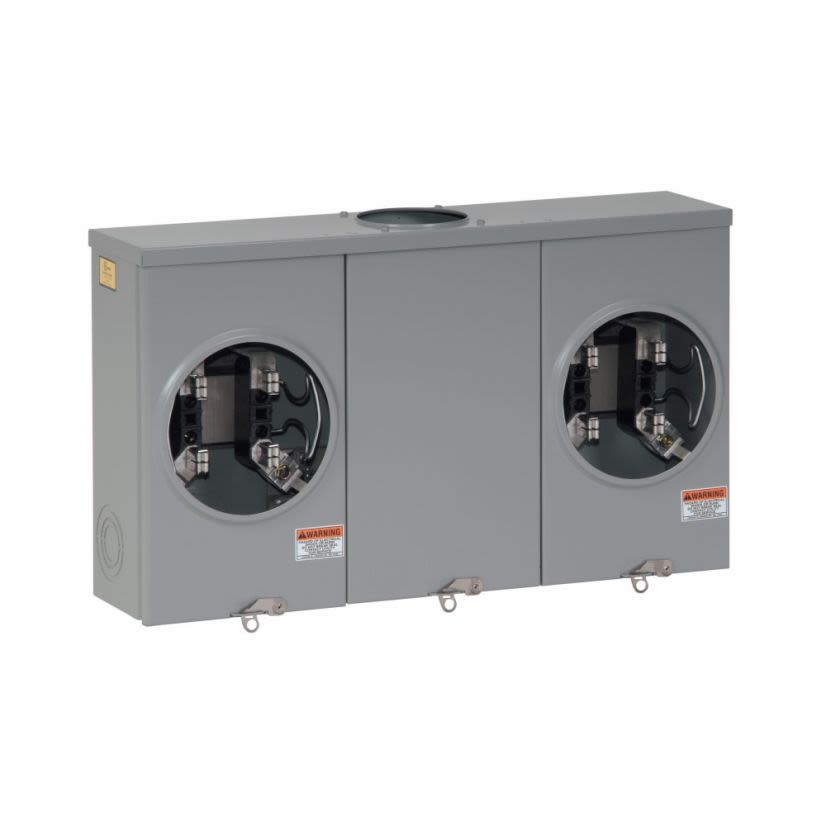

EATON UHT2R2332TCH 2-Position Horizontal Ganged Horn Bypass Triplex Ground Meter Socket, 600 V AC, 200 A, 1 Phase
Cutler-Hammer Series UHT2R2332TCH
EATON UHT2R2332TCH 2-Position Horizontal Ganged Horn Bypass Triplex Ground Meter Socket, 600 V AC, 200 A, 1 PhaseNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #UHT2R2332TCH
Werner Part #536601
UPC782113922621
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #UHT2R2332TCH
Werner Part #536601
UPC782113922621
Product Description
EATON Meter Socket, 2-Position Horizontal Ganged Horn Bypass Triplex Ground, 600 V AC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 4 Jaws, 8 AWG to 250 kcmil, 6 AWG to 350 kcmil Wire, Large Open, 5 x 5 in Hub, Ringless Cover, Line/Load Terminal, 5.38 in L x 15 in W x 6.7 in H
Attributes
Documents
Applications
Features
Attributes
Country of OriginUS
Dimensions5.38 in L x 15 in W x 6.7 in H
Enclosure TypeNEMA 1/4X/3R
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypePlug-On
Number of Poles3
Package Height6.7 in
Package Length24.8 in
Package TypeEACH
Package Weight27.85 lb
Package Width15 IN
Phase1
Size of Wire14 to 4 AWG
Temperature Rating600 to 750 deg C
Terminal TypeLine/Load
Trip TypeCommon/Thermal Magnetic
Type2-Position Horizontal Ganged Horn Bypass Triplex Ground
Type / Style2-Position Horn Bypass Horizontal Ganged Triplex Ground
Voltage600 VAC
Applications
Power Distribution, Residential Buildings and Facilities Applications
Features
- Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
- One-piece, die-run enclosure eliminates tampering and extends product life
- High visibility EATON name embossed on cover
- Knockouts are installer friendly, labor savings, less time needed for removing knockouts
- Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
- Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
- Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
- One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
- 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
- Rating up to 200 kA interrupt rating with specified overcurrent protection devices
- Provides a complete EATON residential solution
- Copper plated alloy jaws with reinforcing spring
- Steel reinforcing springs used in all socket jaws to maintain electrical connections
