Cutler-Hammer Series NZMB1-A100-NA

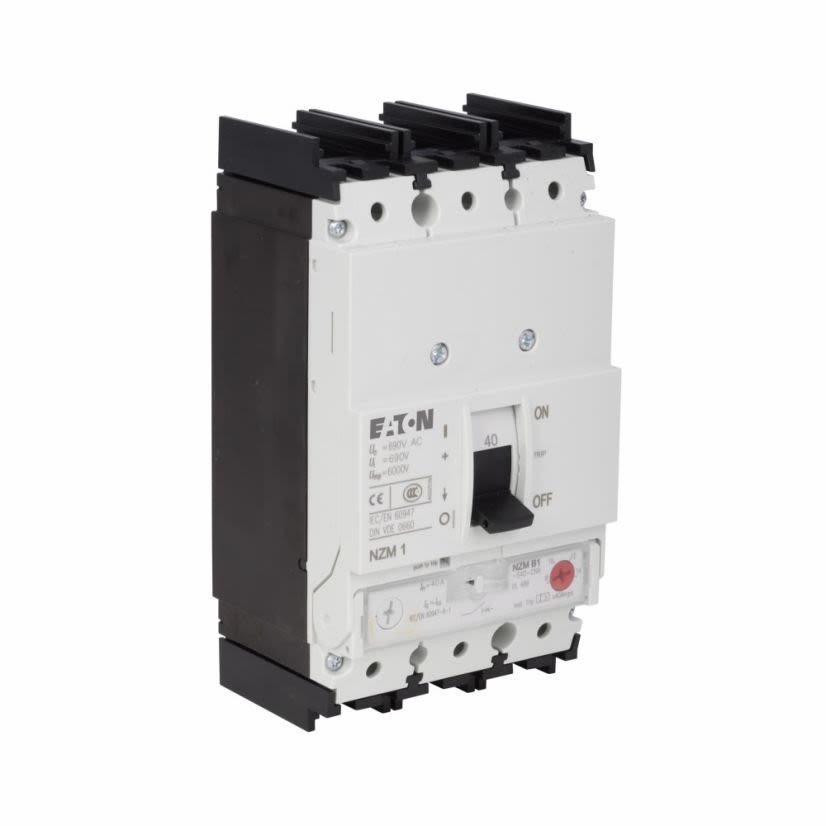

EATON NZMB1-A100-NA Type NZM1 Molded Case Circuit Breaker, 480 V AC, 100 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
EATON NZMB1-A100-NA Type NZM1 Molded Case Circuit Breaker, 480 V AC, 100 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Cutler-Hammer Series NZMB1-A100-NA

EATON NZMB1-A100-NA Type NZM1 Molded Case Circuit Breaker, 480 V AC, 100 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #NZMB1-A100-NA

Werner Part #3987188

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #NZMB1-A100-NA

Werner Part #3987188

Product Description

EATON Molded Case Circuit Breaker, Type NZM1, Series: NZM, 480 V AC, 100 A, 50/60 Hz, 25 kA Interrupt, NZM1 Frame, Thermal Magnetic Trip, 80 to 100 A Trip, 3 Pole, 3 ph, Rocker Lever Actuator, Front Frame Clamp, IP40 Enclosure, -25 to 50 deg C, 2.68 x 3.54 x 5.71 in
Attributes
Actuator TypeRocker Lever
Breaker TypeCH
Connection TypeFront Frame Clamp
Country of OriginDE
Dimensions2.68 x 3.54 x 5.71 in
Enclosure Box SizeNEMA 6R
Enclosure TypeIP40
FrameNZM1
Frequency Rating50/60 Hz
Housing MaterialMetal
Interrupt Rating25 kA
ManufacturerEaton
Mounting TypeSurface/Plug-On
Number of Circuits2
Number of Poles3
Number of Spaces2
Phase3
SeriesNZM
Size of Wire4/0 to 1 AWG
Temperature Rating-25 to 50 deg C
Trip Range80 to 100 A
Trip TypeThermal Magnetic
TypeType NZM1
Type / StyleType NZM1
Voltage480 VAC
Wiring Configuration3-Wire
