Cutler-Hammer Series NGH308033E

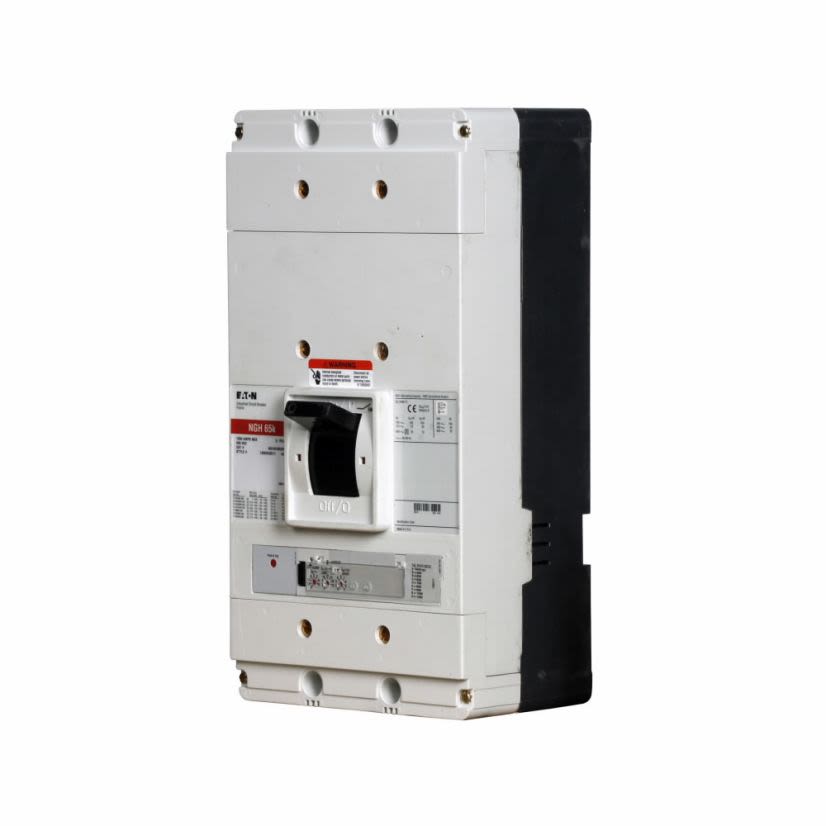

EATON NGH308033E Type NGH High Interrupting Capacity Molded Case Circuit Breaker, 480 V AC, 800 A, 65/100 kA Interrupt, 3 Poles, Electronic Trip
Cutler-Hammer Series NGH308033E
EATON NGH308033E Type NGH High Interrupting Capacity Molded Case Circuit Breaker, 480 V AC, 800 A, 65/100 kA Interrupt, 3 Poles, Electronic TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #NGH308033E
Werner Part #3938242
UPC786685379166
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #NGH308033E
Werner Part #3938242
UPC786685379166
Product Description
EATON Molded Case Circuit Breaker, Type NGH High Interrupting Capacity, Series: G Series, 480 V AC, 800 A, 50/60 Hz Frequency, 65/100 kA Interrupt, NG Frame, Electronic Trip, 3 Pole, Imperial Line/Load Connection, 40 deg C, 6 x 9 x 9 in Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection TypeImperial Line/Load
Country of OriginUS
Dimensions6 x 9 x 9 in
Enclosure TypeNEMA AB1-1993
FrameNG
Frequency Rating50/60 Hz
Interrupt Rating65/100 kA
ManufacturerEaton
Mounting TypeBolt-On
Number of Poles3
SeriesG Series
Temperature Rating40 deg C
Trip TypeElectronic
TypeType NGH High Interrupting Capacity
Type / StyleType NGH High Interrupting Capacity
Voltage480 VAC
Documents
Applications
For MLO and MCB load centers and circuit breakers, provides a watertight connection between load center, conduit and power distribution, electrical assemblies, panels and EOEMs
Included
Frame, Trip Unit, Mounting Hardware and Standard Terminals
Warranty
1 year
Features
- Compact design frees up panel space
- Common field-fit internal accessories make installation and custom configuration easy
- Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
- Patented contact design features high speed "blow-open" action, resulting in superior performance
- Suitable for reverse feed applications
- 80% rated
- Imperial tapped line and load terminal
- 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
