Cutler-Hammer Series MDL3800

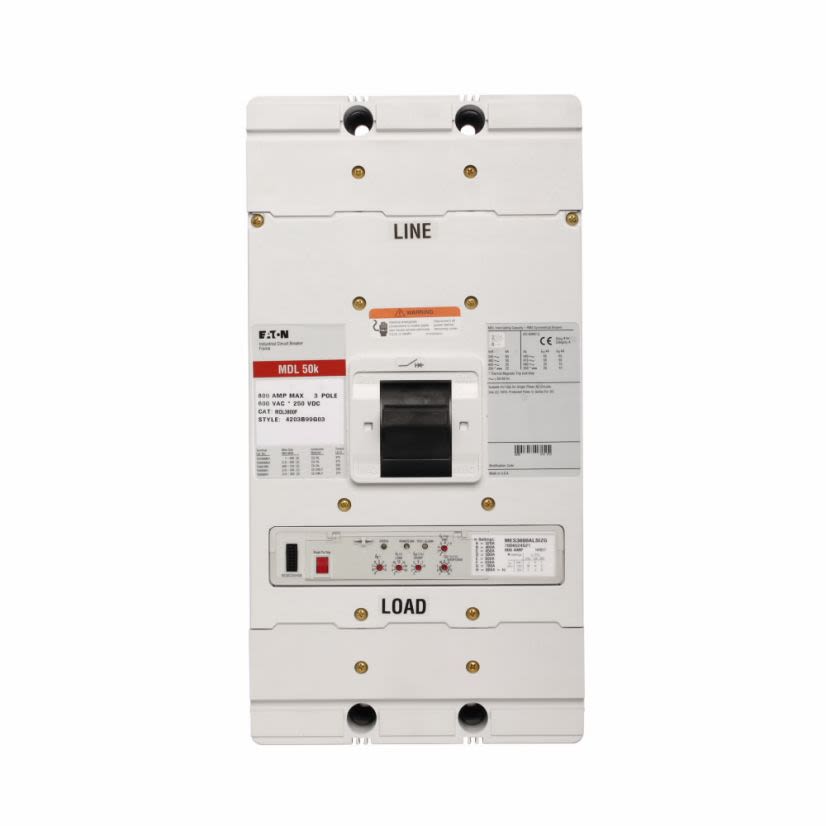

EATON MDL3800 C Series Type MDL Molded Case Circuit Breaker, 600 V AC/250 V DC, 800 A, 50/65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
EATON MDL3800 C Series Type MDL Molded Case Circuit Breaker, 600 V AC/250 V DC, 800 A, 50/65 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Cutler-Hammer Series MDL3800

EATON MDL3800 C Series Type MDL Molded Case Circuit Breaker, 600 V AC/250 V DC, 800 A, 50/65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #MDL3800

Werner Part #511239

UPC782114586006

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #MDL3800

Werner Part #511239

UPC782114586006

Product Description

EATON Molded Case Circuit Breaker, Type MDL, Series: C Series, 600 V AC/250 V DC, 800 A, 50/60 Hz Frequency, 50/65 kA Interrupt, M Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Line/Load Connection, 3/0 AWG to 400 kcmil Wire, NEMA AB1-1993 Enclosure, Bolted-On Mounting, 40 deg C, 18-1/2 in L x 10-3/4 in W x 8 in H Dimensions
Attributes
Connection TypeLine/Load
Country of OriginUS
Dimensions18-1/2 in L x 10-3/4 in W x 8 in H
Enclosure TypeNEMA AB1-1993
FrameM
Frequency Rating50/60 Hz
Horsepower30 hp
Insulation TypeInsulated
Interrupt Rating50/65 kA
ManufacturerEaton
MaterialSteel
Mounting TypeSurface
Number of Poles3
Number of Wires3
Package Height8 IN
Package Length18 in
Package TypeEACH
Package Weight30 lb
Package Width11 in
Phase3
SeriesC Series
Short Circuit Current Rating200 kA
Size of Wire3/0 AWG to 400 kcmil
Temperature Rating40 deg C
Terminal TypeLug
Trip TypeThermal Magnetic
TypeType MDL
Type / StyleType MDL
Voltage600 VAC/250 VDC
