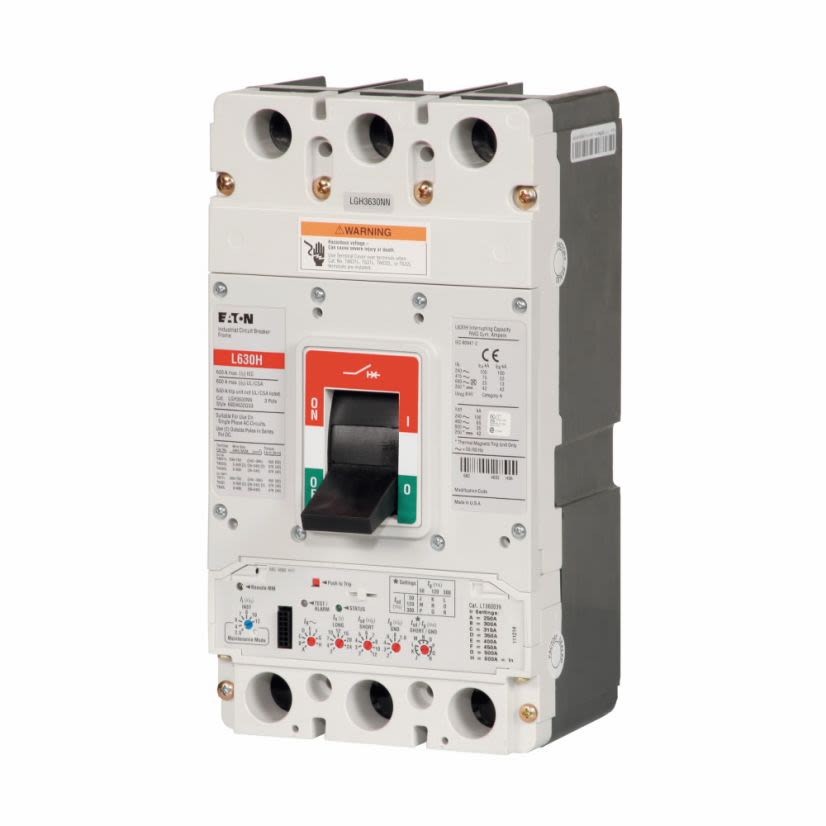

Cutler-Hammer Series LGH340033G
EATON LGH340033G Type LGH Molded Case Circuit Breaker, 600/690 V AC, 400 A, 35/65/100 kA Interrupt, 3 Poles, Electronic Trip
Cutler-Hammer Series LGH340033G
EATON LGH340033G Type LGH Molded Case Circuit Breaker, 600/690 V AC, 400 A, 35/65/100 kA Interrupt, 3 Poles, Electronic TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #LGH340033G
Werner Part #3983692
UPC782116994847
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #LGH340033G
Werner Part #3983692
UPC782116994847
Product Description
EATON Molded Case Circuit Breaker, Type LGH, Series: G Series, 600/690 V AC, 400 A, 50/60 Hz Frequency, 35/65/100 kA Interrupt, LG Frame, Electronic Trip, 3 Pole, 3 ph, Toggle Handle Actuator, Standard Line/Load Connection, -20 to 70 deg C, 4.09 x 5.48 x 5.48 in Dimensions, Glass Polyester
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Actuator TypeToggle Handle
Connection TypeStandard Line/Load
Country of OriginUS
Dimensions4.09 x 5.48 x 5.48 in
FrameLG
Frequency Rating50/60 Hz
Interrupt Rating35/65/100 kA
ManufacturerEaton
MaterialGlass Polyester
Number of Poles3
Package TypeEACH
Phase3
SeriesG Series
Temperature Rating-20 to 70 deg C
Trip Range40 to 100
Trip TypeElectronic
TypeType LGH
Type / StyleComplete breaker
Voltage600/690 VAC
Documents
Applications
Electrical Assemblies, Panels and EOEMs Applications
Included
Metric Mounting Hardware
Warranty
1 year
Features
- Compact design frees up panel space
- Common field-fit internal accessories make installation and custom configuration easy
- Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
- Patented contact design features high speed "blow-open" action, resulting in superior performance
- Mounting hardware and lugs are included for convenience, eliminating the need for separate parts orders
- Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584, guide for performing arc flash hazard calculations
- Meets the requirements of UL, CSA, IEC, CCC and CE, providing a truly global design and worldwide acceptance
- 100 kA at 240 VAC, 75 kA at 415 VAC, 65 kA at 480 VAC, 35 kA at 600 VAC interrupt rating
