Cutler-Hammer Series LGC3300FAG

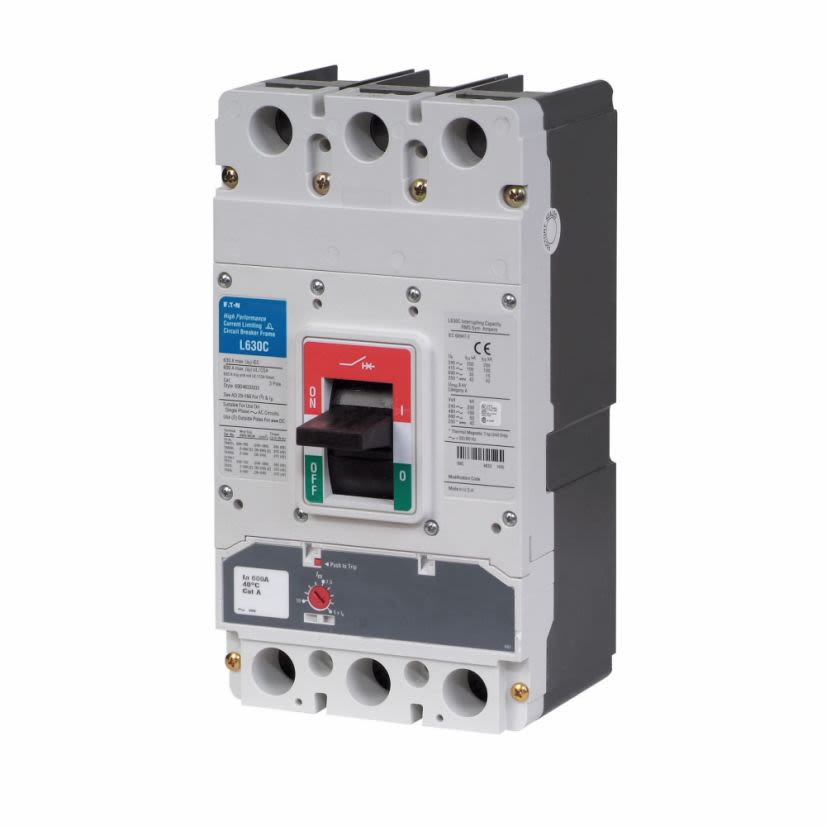

EATON LGC3300FAG Molded Case Circuit Breaker, 600/690 V AC, 300 A, 50 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Cutler-Hammer Series LGC3300FAG
EATON LGC3300FAG Molded Case Circuit Breaker, 600/690 V AC, 300 A, 50 kA Interrupt, 3 Poles, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Molded Case Circuit Breaker, Series: G Series, 600/690 V AC, 300 A, 50/60 Hz, 50 kA Interrupt, LG Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Toggle Handle Actuator, Standard Line/Load, -20 to 70 deg C, 4.09 x 5.48 x 5.48 in, Glass Polyester
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
Actuator TypeToggle Handle
Connection TypeStandard Line/Load
Country of OriginUS
Dimensions4.09 x 5.48 x 5.48 in
FrameLG
Frequency Rating50/60 Hz
Interrupt Rating50 kA
ManufacturerEaton
MaterialGlass Polyester
Mounting TypeFlush
Number of Poles3
Package TypeEACH
Phase3
SeriesG Series
Suitable For Use WithBR4040B200/BR4040BC200/BR4040H200/BR4040N200/BR4040NC200 Type BR Loadcenter and Circuit Breaker
Temperature Rating-20 to 70 deg C
Trip TypeThermal Magnetic
TypeCombination Replacement
Type / StyleComplete breaker
Voltage600/690 VAC
Documents
Applications
Electrical Assemblies, Panels and OEMs Applications
Included
Metric Mounting Hardware
Warranty
1 year
Features
- Compact design frees up panel space
- Common field-fit internal accessories make installation and custom configuration easy
- Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
- Patented contact design features high speed "blow-open" action, resulting in superior performance
- Mounting hardware and lugs are included for convenience, eliminating the need for separate parts orders
- Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584, guide for performing arc flash hazard calculations
- Meets the requirements of UL, CSA, IEC, CCC and CE, providing a truly global design and worldwide acceptance
- 200 kA at 240 VAC, 100 kA at 415/480 VAC, 50 kA at 600 VAC interrupt rating
Specifications
125 A, 8-2/0 AWG Connection
