Cutler-Hammer Series KDB3400

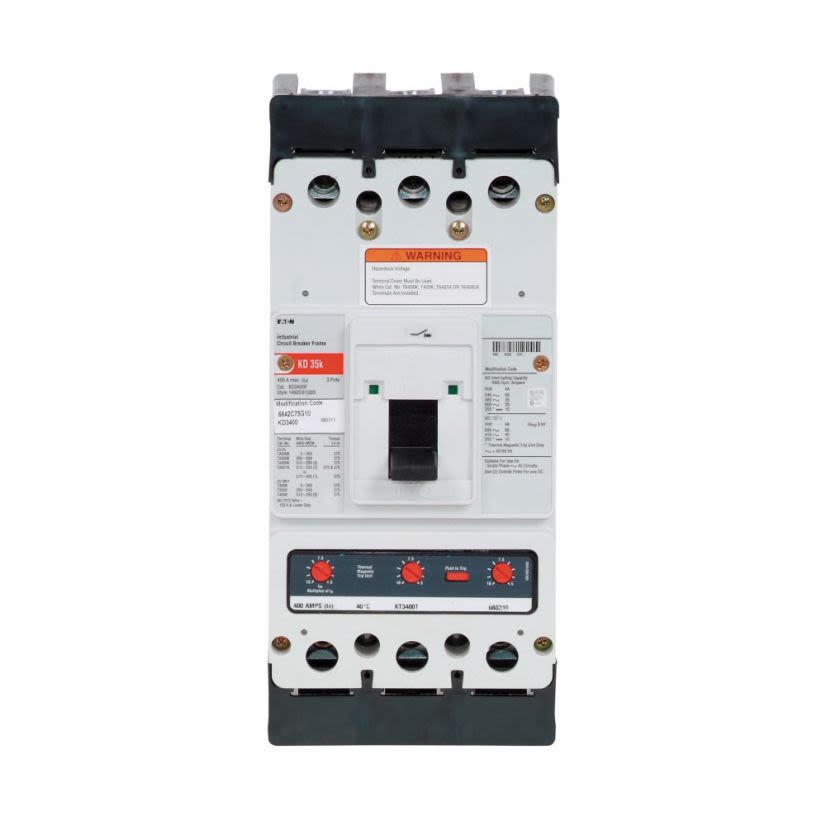

EATON Cutler-Hammer Series KDB3400 C Series Type KDB Molded Case Circuit Breaker, 600 VAC, 250 VDC, 400 A, 35/65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
Cutler-Hammer Series KDB3400
EATON Cutler-Hammer Series KDB3400 C Series Type KDB Molded Case Circuit Breaker, 600 VAC, 250 VDC, 400 A, 35/65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #KDB3400
Werner Part #590758
UPC786679349397
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #KDB3400
Werner Part #590758
UPC786679349397
Product Description
EATON Cutler-Hammer Series Molded Case Circuit Breaker, Type KDB, Series: C Series, 600 VAC, 250 VDC, 400 A, 50/60 Hz Frequency, 35/65 kA Interrupt, K Frame, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip, 3 Pole, Line/Load Connection, 40 deg C, 4.1 x 5.5 x 5.5 in Dimensions
Attributes
Documents
Features
Attributes
Connection TypeLine/Load
Country of OriginDominican Republic
Dimensions35 in H x 29-1/2 in W x 6 in D
Enclosure TypeNEMA 3R
FrameK
Frequency Rating60 Hz
Interrupt Rating35/65 kA
ManufacturerEaton Corp
Mounting TypeSurface
Number of Poles3
Phase1
SeriesC Series
Terminal TypeSingle Mechanical
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeRingless
Type / StyleType KDB
Voltage600 VAC, 250 VDC
Features
Patented contact design features high speed "blow open" action, resulting in superior performanceSuitable for reverse feed applications65 kA at 240 VAC, 35 kA at 480 VAC interrupt rating
