Cutler-Hammer Series KD3200

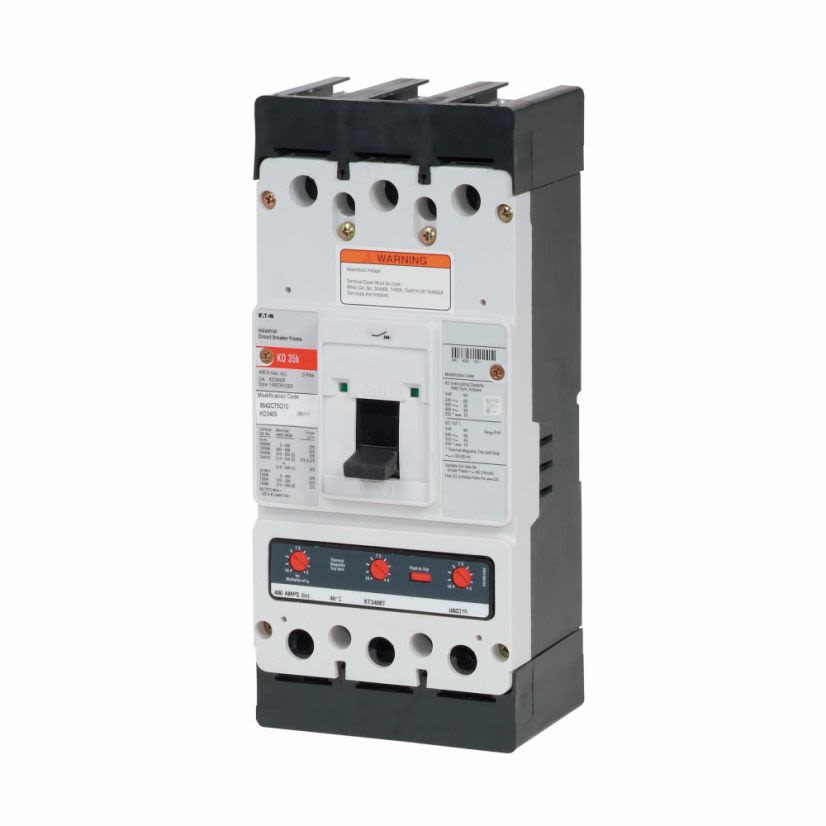

EATON Cutler-Hammer Series KD3200 C Series Type KD Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 35/65 kA Interrupt, 3 Poles, Electronic/Fixed Thermal Magnetic/Interchangeable Trip
Cutler-Hammer Series KD3200
EATON Cutler-Hammer Series KD3200 C Series Type KD Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 35/65 kA Interrupt, 3 Poles, Electronic/Fixed Thermal Magnetic/Interchangeable TripNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Cutler-Hammer Series Molded Case Circuit Breaker, Type KD, Series: C Series, 600 VAC/250 VDC, 200 A, 50/60 Hz Frequency, 35/65 kA Interrupt, K Frame, Electronic/Fixed Thermal Magnetic/Interchangeable Trip, 3 Pole, 3 ph, Line/Load Connection, 3 AWG to 350 kcmil Wire, Panel Mounting, 40 deg C, 4.1 in L x 5.5 in W x 5.5 in H Dimensions
Attributes
Documents
Features
Attributes
Actuator TypeRotary Handle
ColorGray
Connection TypeLine/Load
Country of OriginDominican Republic
Dimensions8-1/6 in H x 5-3/4 in W x 6-5/16 in D
Enclosure TypeNEMA 3/4/4X/7/9
FinishPolyester Powder Painted
FrameK
Frequency Rating60 Hz
Horsepower10 hp, 30 hp
Interrupt Rating35/65 kA
ManufacturerEaton Corp
MaterialCopper Free Aluminum
Mounting TypeWall
Number of Poles3
Number of Wires4
Phase3
SeriesB7NFD
Size of Wire3 AWG to 350 kcmil
Temperature Rating40 deg C
Trip TypeElectronic/Fixed Thermal Magnetic/Interchangeable
TypeFeed Through Non-Fused
Type / StyleType KD
Voltage600 VAC/250 VDC
Documents
Features
Standard interrupting capacity65 kA at 240 VAC, 35 kA at 480 VAC interrupt rating
