Cutler-Hammer Series JDB3250

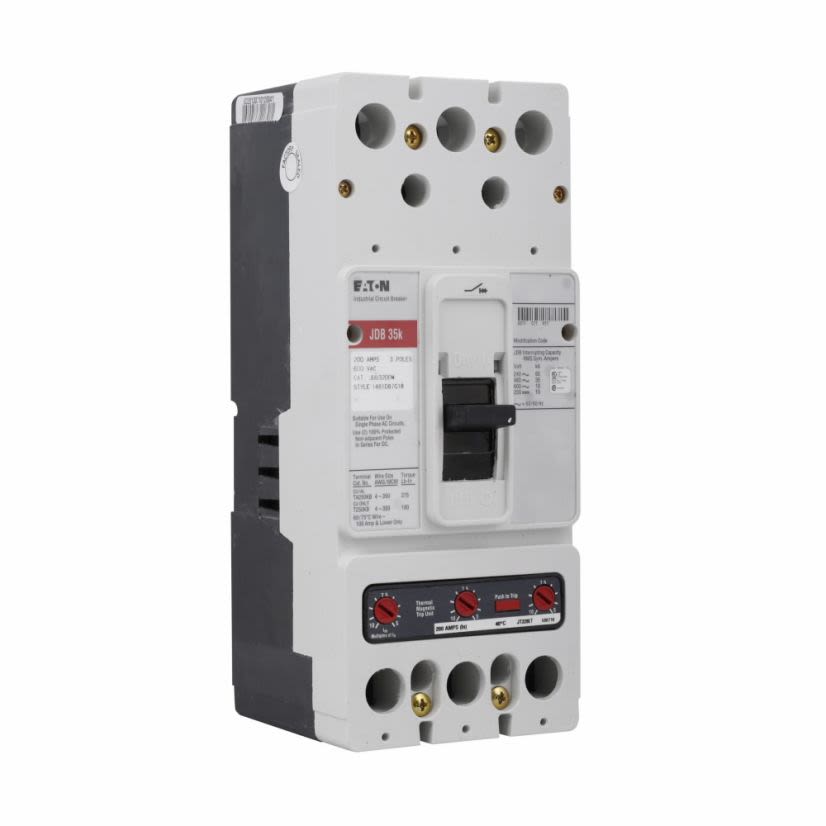

EATON Cutler-Hammer Series JDB3250 C Series Type JDB Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 35/65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
Cutler-Hammer Series JDB3250
EATON Cutler-Hammer Series JDB3250 C Series Type JDB Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 35/65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #JDB3250
Werner Part #536945
UPC786679516348
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #JDB3250
Werner Part #536945
UPC786679516348
Product Description
EATON Cutler-Hammer Series Molded Case Circuit Breaker, Type JDB, Series: C Series, 600 VAC/250 VDC, 250 A, 50/60 Hz Frequency, 35/65 kA Interrupt, J Frame, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip, 3 Pole, 3 ph, Feed-Through/Line/Load Connection, 4 AWG to 350 kcmil Wire, 40 deg C, 4.06 in L x 4.13 in W x 4.13 in H Dimensions
Attributes
Documents
Features
Attributes
Connection TypeFeed-Through/Line/Load
Country of OriginDominican Republic
Dimensions5-1/2 in H x 3 in W x 3 in D
FrameJ
Frequency Rating50/60 Hz
Interrupt Rating35/65 kA
ManufacturerEaton Corp
Mounting TypeLeft Pole
Number of Poles3
Phase3
SeriesG Series
Size of Wire4 AWG to 350 kcmil
Suitable For Use WithG Series EG, JG, LG-Frame Molded Case Circuit Breaker
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
Type / StyleType JDB
Voltage600 VAC/250 VDC
Documents
Features
Patented contact design features high pressure "blow open" action, resulting in superior performanceCircuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculationsSuitable for reverse feed applicationsFactory sealed65 kA at 240 VAC, 35 kA at 480 VAC interrupt rating
