Cutler-Hammer Series HMCPS030H1C

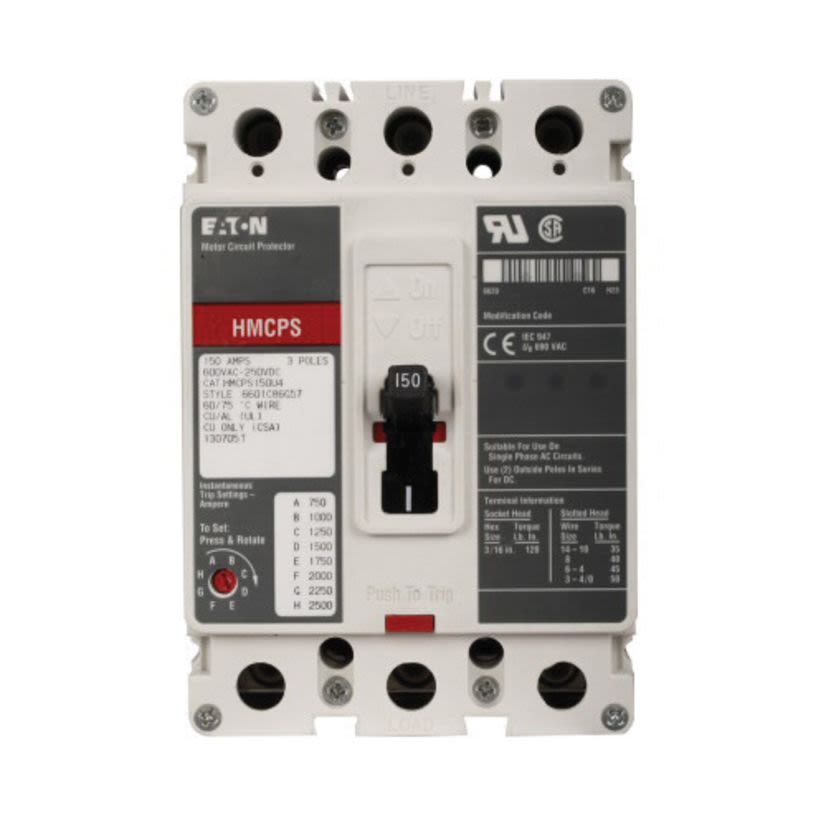

EATON HMCPS030H1C C Series Type HMCP Motor Circuit Protector, 600 V AC/250 V DC, 30 A, 3 Poles, Magnetic Trip
Cutler-Hammer Series HMCPS030H1C
EATON HMCPS030H1C C Series Type HMCP Motor Circuit Protector, 600 V AC/250 V DC, 30 A, 3 Poles, Magnetic TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #HMCPS030H1C
Werner Part #3941145
UPC786679232620
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #HMCPS030H1C
Werner Part #3941145
UPC786679232620
Product Description
EATON Motor Circuit Protector, Type HMCP, Series: C Series, 600 V AC/250 V DC, 30 A, 50/60 Hz, F Frame, Magnetic Trip, 90 to 300 A Trip, 3 Pole, Line/Load Lug, NEMA 1, Panel Mount, 8 x 5 x 5 in
Attributes
Documents
Applications
Features
Attributes
ColorBlack
Connection TypeLine/Load Lug
Country of OriginDO
Dimensions8 x 5 x 5 in
Enclosure TypeNEMA 1
FinishTin Plated
FrameF
Frequency Rating50/60 Hz
ManufacturerEaton
MaterialAluminum/Thermoplastic
Number of Poles3
Package TypeEACH
SeriesC Series
Short Circuit Current Rating10 kA
Size of Wire4 AWG to 350 kcmil Cu/AL Line/Load
Trip Range90 to 300 A
Trip TypeMagnetic
TypeType HMCP
Type / StyleType HMCP
Voltage600 VAC, 250 VDC
Documents
Applications
Commercial, Institutional Buildings and Structures
Features
- For remote indication of an automatic trip operation
- Typically two or three wires extend through the case.Provides remote indication of the circuit breaker status (open/closed)
- Multiple cable terminal options are available for each frame providing alternatives to connect primary power and loads to the circuit breaker
- Additionally control wire terminals provide a means to tap off control power.Multiwire terminals on the load side of the breaker can also be used to distribute the load from the circuit breaker to multiple devices without the use of separate distribution terminal blocks
- Most circuit breaker accessories are mounted internally and are not visible with a quick inspection
- Electrical OEMs
- Machinery OEMs
