Cutler-Hammer Series HLDDC21200

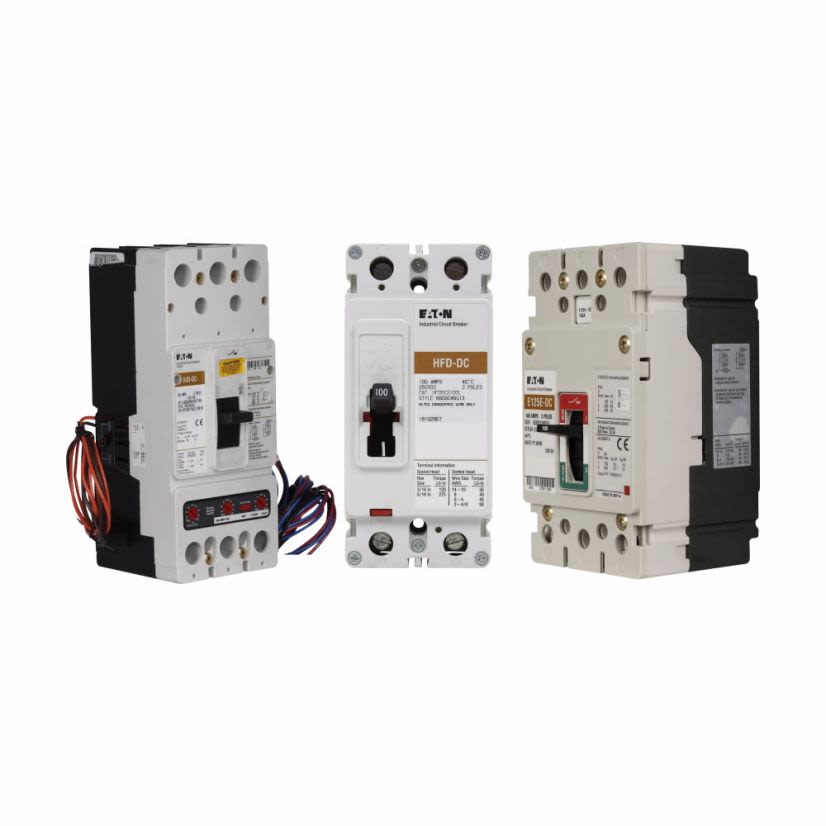

EATON Cutler-Hammer Series HLDDC21200 C Series Type HLDDC Molded Case Circuit Breaker, 600 VAC/600 VDC, 1200 A, 35 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Cutler-Hammer Series HLDDC21200
EATON Cutler-Hammer Series HLDDC21200 C Series Type HLDDC Molded Case Circuit Breaker, 600 VAC/600 VDC, 1200 A, 35 kA Interrupt, 2 Poles, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Cutler-Hammer Series Molded Case Circuit Breaker, Type HLDDC, Series: C Series, 600 VAC/600 VDC, 1200 A, 35 kA Interrupt, L Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Line and Load Connection, 40 deg C, 4.06 in L x 8.25 in W x 10.75 in H Dimensions
Attributes
Documents
Features
Attributes
Connection TypeLine/Load
Country of OriginUnited States
Dimensions2.63 in L x 1 in W x 4 in H
Enclosure TypeNEMA AB1-1993
FrameG
Frequency Rating50/60 Hz
Interrupt Rating14 kA
ManufacturerEaton Corp
Mounting TypeBolted-On
Number of Poles1
Phase1
SeriesC Series
Size of Wire10 to 1/0 AWG
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeType GHB
Type / StyleType HLDDC
Voltage600 VAC/600 VDC
Documents
Features
Meet or exceed rigorous quality standards established by third party certifier to ensure premium quality and reliabilityPatented contact design features high speed "blow-open" action resulting in superior performanceCost effective thermal magnetic trip units provide reliable overload and short circuit protection35 kA at 600 VAC, 50 kA at 250 VDC interrupt rating
