Cutler-Hammer Series HFDE322532

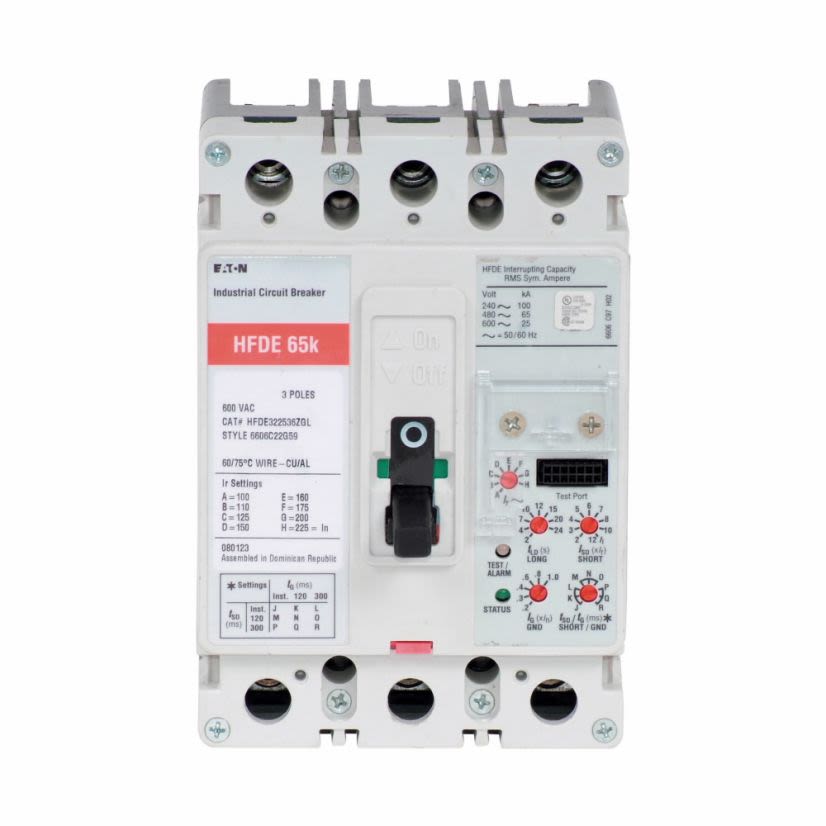

EATON HFDE322532 C Series Type HFDE Molded Case Circuit Breaker, 600 V AC/250 V DC, 225 A, 65/100 kA Interrupt, 3 Poles, Electronic Trip
Cutler-Hammer Series HFDE322532
EATON HFDE322532 C Series Type HFDE Molded Case Circuit Breaker, 600 V AC/250 V DC, 225 A, 65/100 kA Interrupt, 3 Poles, Electronic TripNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Molded Case Circuit Breaker, Type HFDE, Series: C Series, 600 V AC/250 V DC, 225 A, 50/60 Hz, 65/100 kA Interrupt, F Frame, Electronic Trip, 3 Pole, Handle Actuator, Load, 14 to 1/0 AWG Wire, 40 deg C, 3.38 x 4.13 x 6 in
Attributes
Documents
Applications
Features
Attributes
Actuator TypeHandle
ColorBlack
Connection TypeLoad
Country of OriginDO
Dimensions3.38 x 4.13 x 6 in
FinishTin Plated
FrameF
Frequency Rating50/60 Hz
Interrupt Rating65/100 kA
ManufacturerEaton
MaterialAluminum/Thermoplastic
Number of Poles3
Package TypeEACH
SeriesC Series
Short Circuit Current Rating10 kA
Size of Wire6 AWG to 350 kcmil Cu Line/Load
Temperature Rating40 deg C
Trip TypeElectronic
TypeType HFDE
Type / StyleType HFDE
Voltage600 VAC, 250 VDC
Documents
Applications
Panelboard, Switchboard, Motor Control Center, Busway, Marine, Electrical Assemblies, Panels and OEMs Applications
Features
- Patented contact design features high-speed blow-open action
- resulting in superior performance
- A large domestic installed base ensures familiarity
- and acceptability throughout the U.S
- An extensive line of heavy duty external accessories are ideal for harsh and hazardous environments
