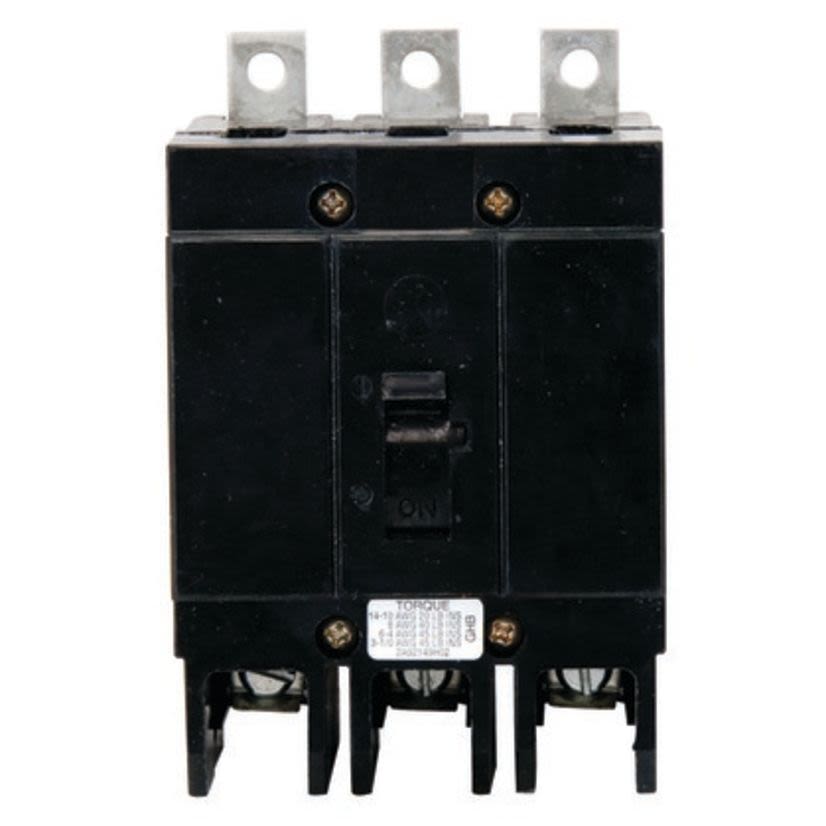

Cutler-Hammer Series GHB3100

EATON GHB3100 C Series Type GHB Molded Case Circuit Breaker, 277/480Y V AC/125/250 V DC, 100 A, 14 kAIC at 480Y/277 VAC/65 kAIC at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip
EATON GHB3100 C Series Type GHB Molded Case Circuit Breaker, 277/480Y V AC/125/250 V DC, 100 A, 14 kAIC at 480Y/277 VAC/65 kAIC at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip

Cutler-Hammer Series GHB3100

EATON GHB3100 C Series Type GHB Molded Case Circuit Breaker, 277/480Y V AC/125/250 V DC, 100 A, 14 kAIC at 480Y/277 VAC/65 kAIC at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip
In Stock: 5more info
|

BrandCutler-Hammer Series

MFG #GHB3100

Werner Part #24753

UPC786679911334

In Stock: 5more info
|

BrandCutler-Hammer Series

MFG #GHB3100

Werner Part #24753

UPC786679911334

Product Description

EATON Molded Case Circuit Breaker, Type GHB, Series: C Series, 277/480Y V AC/125/250 V DC, 100 A, 50/60 Hz, 14 kAIC at 480Y/277 VAC/65 kAIC at 240 VAC Interrupt, G Frame, Thermal Magnetic Trip, 3 Pole, Line/Load, 10 to 1/0 AWG Wire, Bolt-On Mount, 40 deg C, 2.63 x 3 x 4 in
Attributes
Actuator TypeHandle
Connection TypeLine/Load
Country of OriginDO
Dimensions2.63 x 3 x 4 in
Enclosure TypeNEMA 3R
FrameG
Frequency Rating50/60 Hz
Horsepower3 hp Standard Fuse/7-1/2 hp Time Delay
Interrupt Rating14 kAIC at 480Y/277 VAC/65 kAIC at 240 VAC
ManufacturerEaton
MaterialSteel
Mounting TypeSurface
Number of Poles3
Number of Wires3
Package TypeEACH
Phase3 phase
SeriesC Series
Short Circuit Current Rating100 kA
Temperature Rating40 deg C
Trip TypeThermal Magnetic
TypeType GHB
Voltage277/480 VAC Max 125/250 VDC
