Cutler-Hammer Series GD2050D

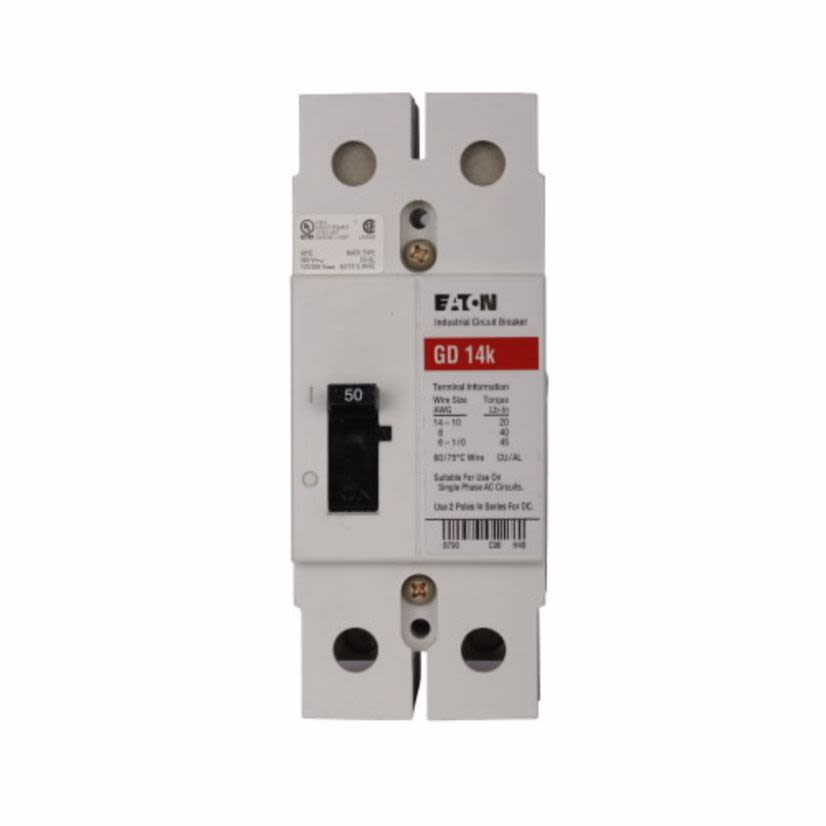

EATON GD2050D C Series Type GD Molded Case Circuit Breaker, 480 VAC, 125/250 VDC, 50 A, 14/65 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Cutler-Hammer Series GD2050D
EATON GD2050D C Series Type GD Molded Case Circuit Breaker, 480 VAC, 125/250 VDC, 50 A, 14/65 kA Interrupt, 2 Poles, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #GD2050D
Werner Part #4055494
UPC782116105823
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #GD2050D
Werner Part #4055494
UPC782116105823
Product Description
EATON Molded Case Circuit Breaker, Type GD, Series: C Series, 480 VAC, 125/250 VDC, 50 A, 50/60 Hz Frequency, 14/65 kA Interrupt, G Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Line/Load/Ring Connection, Cable In/Cable Out Mounting, 40 deg C
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection TypeLine/Load/Ring
Country of OriginDO
FrameG
Frequency Rating50/60 Hz
Interrupt Rating14/65 kA
ManufacturerEaton
Number of Poles2
Package Height4.88 in
Package Length2.63 in
Package TypeEACH
Package Width2 in
Phase1
SeriesC Series
Temperature Rating40 deg C
Trip TypeThermal Magnetic
TypeType GD
Type / StyleType GD
Voltage480 VAC/125/250 VDC
Documents
Applications
Panelboard, Switchboard, Motor Control Center, Busway, Circuit Protection, Electrical Assemblies, Panels and EOEMs - Other Applications
Included
Binding Head Screws, Clamps and Mounting Hardware
Warranty
1 year
Features
- Patented contact design features high speed "blow-open" action, resulting in superior performance
- Suitable for reverse feed applications
- 65 kA at 240 VAC, 14 kA at 480 VAC interrupt rating
