Cutler-Hammer Series FH32

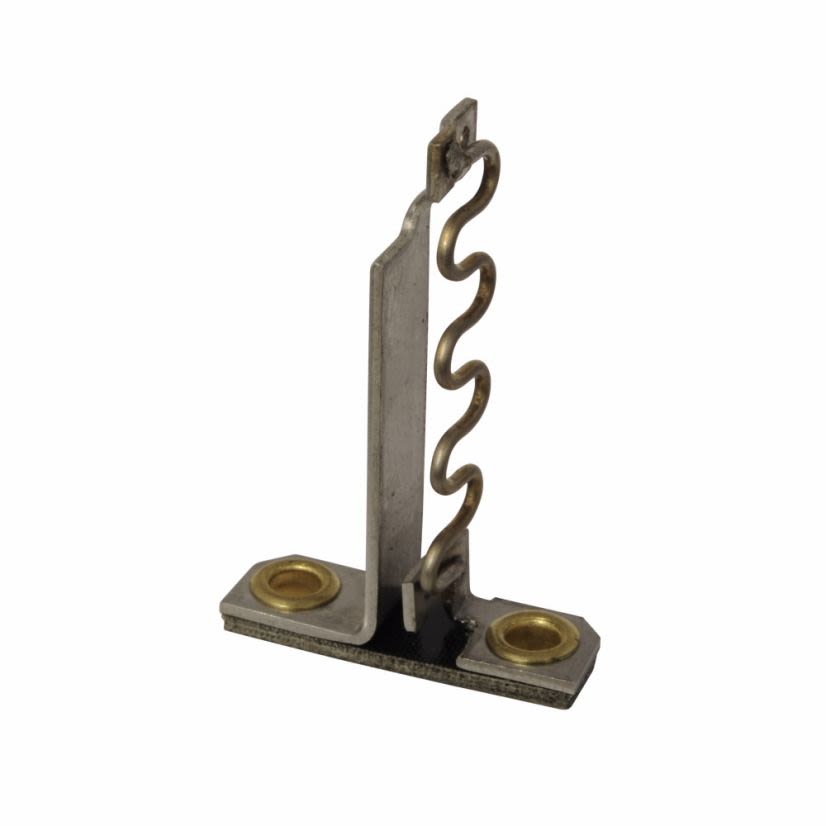

EATON FH32 Type B100 Overload Relay Heater
Cutler-Hammer Series FH32
EATON FH32 Type B100 Overload Relay HeaterNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Overload Relay Heater, Type B100, 4.08 to 4.39/4.72 to 5.14 A Ambient, 3.8 to 4.11/4.62 to 4.9 A Non-Comp Full Load, Fast/Thermal Trip, 2.1 in L x 1.3 in W x 0.8 in H Size, NEMA 0/1/2 Enclosure
Attributes
Documents
Applications
Features
Attributes
Country of OriginDO
Enclosure TypeNEMA 0/1/2
Full Load Current4.08 to 4.39/4.72 to 5.14 A Ambient, 3.8 to 4.11/4.62 to 4.9 A Non-Comp
ManufacturerEaton
Package Height0.8 in
Package Length2.1 in
Package TypeEACH
Package Weight0.03 lb
Package Width1.3 in
SeriesA200
Size2.1 in L x 1.3 in W x 0.8 in H
Type / StyleType B100
Applications
For A200 series NEMA 0/1/2 starter, safety, emergency exit devices, industrial facilities and factories facility applications
Features
- Select heater coils based on full load current (FLA) shown on motor nameplate
- Type A and b overload relay
- Heater coils are rated to protect 40 deg C rise and a service factor of 1.15
- 3.8 to 4.11 A, 4.62 to 4.9 A non-compensating full load current
- 15 a fuse
