Cutler-Hammer Series FAZ-D10/3-NA

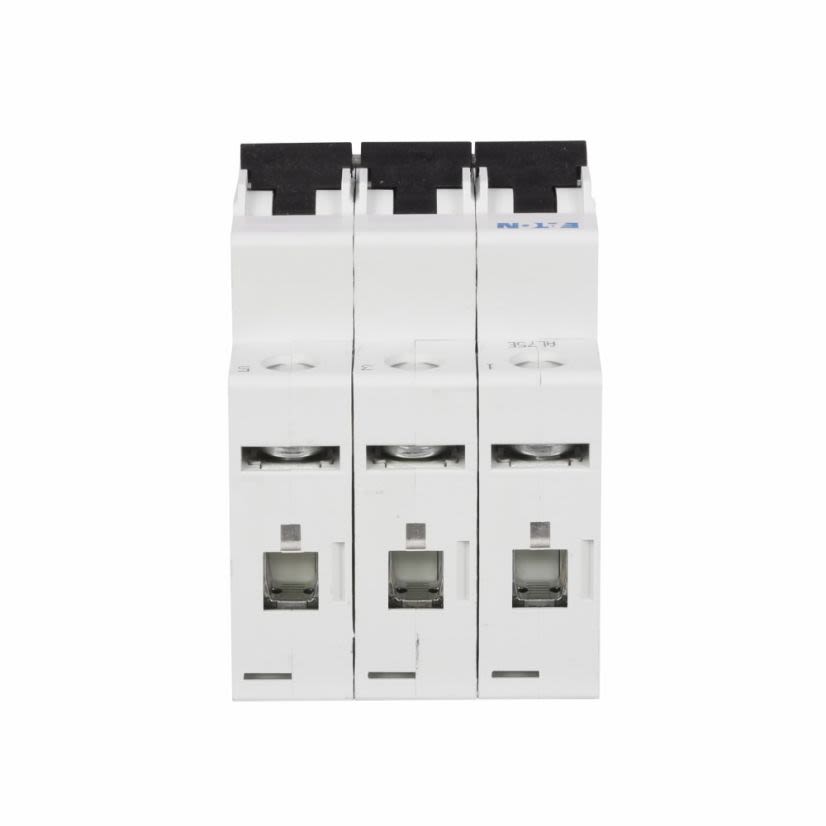

EATON FAZ-D10/3-NA Standard Current Limiting Supplementary Protector, 480/277 V AC, 10 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Cutler-Hammer Series FAZ-D10/3-NA
EATON FAZ-D10/3-NA Standard Current Limiting Supplementary Protector, 480/277 V AC, 10 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #FAZ-D10/3-NA
Werner Part #3976700
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #FAZ-D10/3-NA
Werner Part #3976700
Product Description
EATON Supplementary Protector, Standard Current Limiting, Series: FAZ, 480/277 V AC, 10 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 3 Pole, Handle Actuator, 18 to 6 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -40 to 75 deg C, 2.1 in L x 2.97 in W x 4.13 in H Dimensions, Nylon
Attributes
Documents
Applications
Features
Attributes
Actuator TypeHandle
Connection TypeLoad Lug
Country of OriginES
Dimensions2.1 in L x 2.97 in W x 4.13 in H
Enclosure TypeIP20
FrameQ-Line
Frequency Rating50/60 Hz
Interrupt Rating10 kA
ManufacturerEaton
MaterialNylon
Mounting TypeBolted-On
Number of Poles3
Phase3
SeriesFAZ
Size of Wire(2) 1 AWG to 300 kcmil
Temperature Rating-40 to 75 deg C
Trip TypeThermal Magnetic
TypeStandard Current Limiting
Type / StyleType FAZ-NA Standard Current Limiting
Voltage480/277 VAC
Applications
Circuit Protection, Convenience Receptacle Circuits, Motor Control Circuits, Load Circuits Leaving The Equipment, HACR Equipment, PLC I/O Points, Computers, Power Supplies, Control Instrumentation, Relays, UPS, Power Conditioners, Industrial, Generation, Renewable Energy, Alternative Energy, Conventional Energy, Datacenters - IT Space, CI and Hyper Converged and Marine Vessels Applications
Features
- Current limiting design provides fast short-circuit interruption that reduces the let-through energy, which can damage the circuit
- Thermal magnetic over current protection
- Three levels of short circuit protection, categorized by B, C and D curves
- Trip-free design breaker can not be defeated by holding the handle in the On position
- A color coded red/green indicator provides immediate visual indication of device status (green for Off, red for On) and isolation function
- Power to the circuit breakers can be fed from the line or load side
- Easy installation on DIN rail
- To save installation time, bus connectors and feeder terminal facilitate mounting and wiring of multiple miniature circuit breaker arrays in control panel assemblies
