Cutler-Hammer Series EHD3100

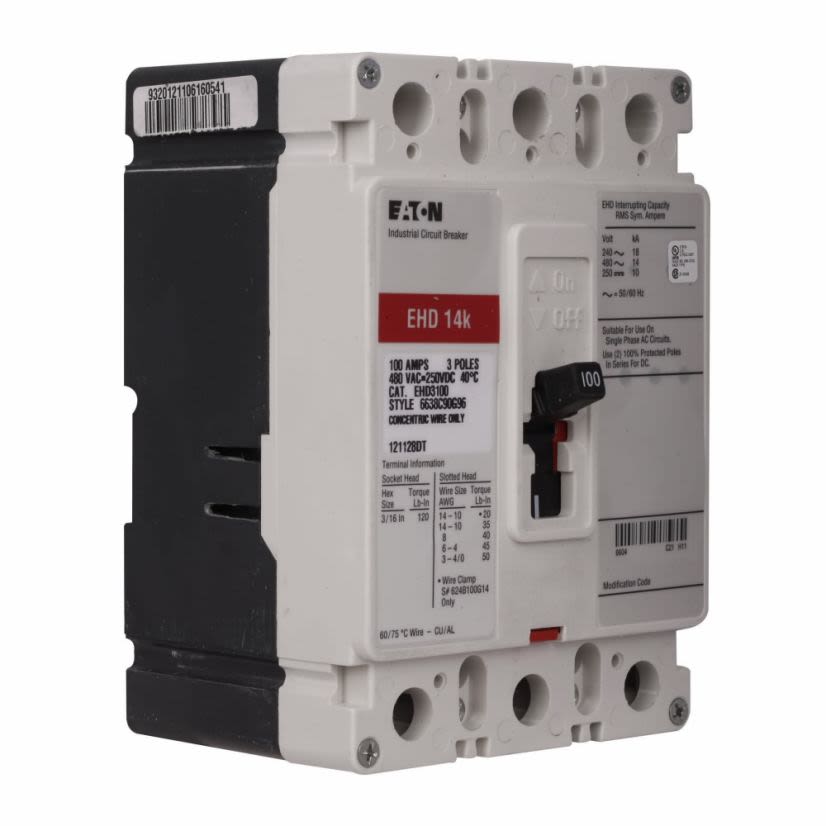

EATON EHD3100 C Series Type EHD Molded Case Circuit Breaker, 480 V AC/250 V DC, 100 A, 14 kAIC at 480 VAC/18 kAIC at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip
EATON EHD3100 C Series Type EHD Molded Case Circuit Breaker, 480 V AC/250 V DC, 100 A, 14 kAIC at 480 VAC/18 kAIC at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip

Cutler-Hammer Series EHD3100

EATON EHD3100 C Series Type EHD Molded Case Circuit Breaker, 480 V AC/250 V DC, 100 A, 14 kAIC at 480 VAC/18 kAIC at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #EHD3100

Werner Part #577881

UPC786679317204

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #EHD3100

Werner Part #577881

UPC786679317204

Product Description

EATON Molded Case Circuit Breaker, Type EHD, Series: C Series, 480 V AC/250 V DC, 100 A, 50/60 Hz, 14 kAIC at 480 VAC/18 kAIC at 240 VAC Interrupt, F Frame, Thermal Magnetic Trip, 3 Pole, Handle Actuator, Load, 40 deg C, 3.38 x 4.13 x 6 in
Attributes
Actuator TypeHandle
Breaker TypeTHQL/THQP
Connection TypeLoad
Country of OriginDO
Dimensions3.38 x 4.13 x 6 in
Enclosure Box Size9 in H x 7-1/4 in W x 3 in D
Enclosure TypeNEMA 1
FrameF
Frequency Rating50/60 Hz
Interrupt Rating14 kAIC at 480 VAC/18 kAIC at 240 VAC
ManufacturerEaton
Mounting TypeFlush
Number of Circuits4
Number of Poles3
Package Height6 IN
Package Length8 in
Package TypeEACH
Package Weight4.5 lb
Package Width5 in
SeriesC Series
Size of Wire1 to 2/0 AWG Cu/Al
Temperature Rating40 deg C
Trip TypeThermal Magnetic
TypeType EHD
Type / StyleType EHD
Voltage480 VAC, 250 VDC
Wiring Configuration3-Wire
