Cutler-Hammer Series EGS3125FFG

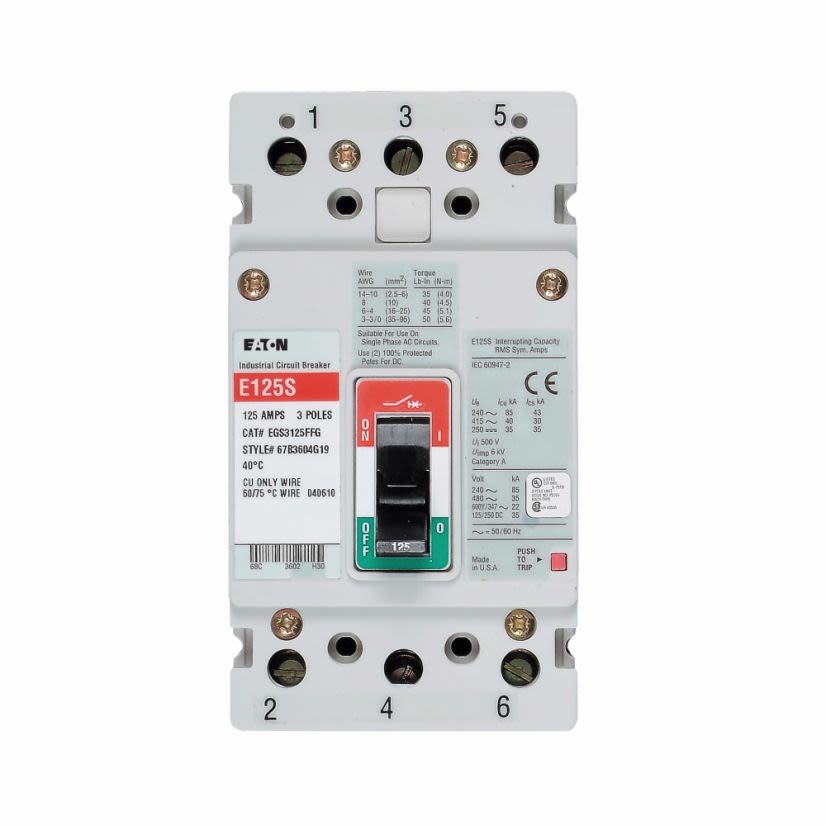

EATON EGS3125FFG Type EGS Molded Case Circuit Breaker, 600Y/347 V AC, 125 A, 22/35/85 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Cutler-Hammer Series EGS3125FFG
EATON EGS3125FFG Type EGS Molded Case Circuit Breaker, 600Y/347 V AC, 125 A, 22/35/85 kA Interrupt, 3 Poles, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #EGS3125FFG
Werner Part #3980500
UPC782114877241
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #EGS3125FFG
Werner Part #3980500
UPC782114877241
Product Description
EATON Molded Case Circuit Breaker, Type EGS, Series: G Series, 600Y/347 V AC, 125 A, 50/60 Hz Frequency, 22/35/85 kA Interrupt, EG Frame, Thermal Magnetic Trip, 3 Pole, Line/Load Connection, 40 deg C, 2.99 x 3 x 3 in Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
ColorBlack
Connection TypeLine/Load
Country of OriginDO
Dimensions2.99 x 3 x 3 in
FrameEG
Frequency Rating50/60 Hz
Interrupt Rating22/35/85 kA
ManufacturerEaton
MaterialThermoplastic
Number of Poles3
Package TypeEACH
SeriesG Series
Short Circuit Current Rating10 kA
Size of Wire6 AWG to 350 kcmil Cu/Al Line/Load
Temperature Rating40 deg C
Trip TypeThermal Magnetic
TypeType EGS
Documents
Applications
Panelboard, Switchboard, Motor Control Center and Busway Applications
Included
Frame, Trip Unit, Mounting Hardware and Standard Terminals
Warranty
1 year
Features
- Compact design frees up panel space
- Common field-fit internal accessories make installation and custom configuration easy
- Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
- Patented contact design features high speed "blow-open" action, resulting in superior performance
- Metric mounting hardware
- 85 kA at 240 VAC, 35 kA at 480 VAC, 22 kA at 600Y/347 VAC interrupt rating
