Cutler-Hammer Series 10250T4043

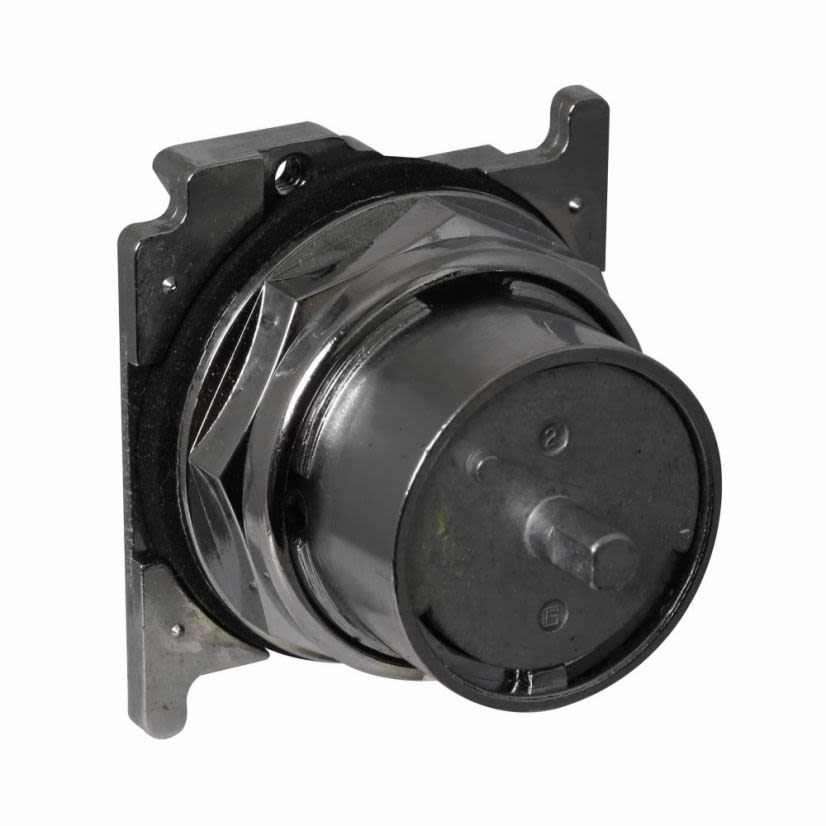

EATON 10250T4043 Heavy Duty Oiltight/Watertight Non-Illuminated Selector Switch Operator, 30.5 mm, 3 Positions
Cutler-Hammer Series 10250T4043
EATON 10250T4043 Heavy Duty Oiltight/Watertight Non-Illuminated Selector Switch Operator, 30.5 mm, 3 PositionsOut of Stockmore info
|
BrandCutler-Hammer Series
MFG #10250T4043
Werner Part #2375006
UPC782113227382
Out of Stockmore info
|
BrandCutler-Hammer Series
MFG #10250T4043
Werner Part #2375006
UPC782113227382
Product Description
EATON Selector Switch Operator, Heavy Duty Oiltight/Watertight Non-Illuminated, Series: 10250T, 30.5 mm Size, Maintained/Spring Return Contact Mode, 3 Positions, 60 deg Left Center/Right Throw, Cam Code: 3, 600 V AC, NEMA 3/4/12/13/3R/4X/IP65 Enclosure, Surface Mounting, Bezel/Housing: Die Cast Zinc, Polished Chrome
Attributes
Documents
Applications
Features
Warranty
Attributes
Bezel/HousingDie Cast Zinc
Contact ModeMaintained/Spring Return
Country of OriginDO
Enclosure TypeNEMA 3/4/12/13/3R/4X/IP65
FinishPolished Chrome
ManufacturerEaton
Mounting TypeSurface
Package Height2.3 in
Package Length2 in
Package TypeEACH
Package Weight0.2 lb
Package Width1.9 in
Series10250T
Size30.5 mm
Documents
Applications
Automation and Logic Control Equipment Applications
Features
- Enclosed silver contacts with reliability nibs
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Diaphragm seals with drainage holes
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs on the operator casing
- Grounding nibs bit through paint and other coatings to provide secure ground
- Slow make and break contact operation
- All normally closed contacts have positive opening operation, i.e, normally closed contacts are forced open in the event of contact weld or spring breakage
- Without cap
Warranty
1 year
