Cutler-Hammer Series E59-M30C129A01-A2

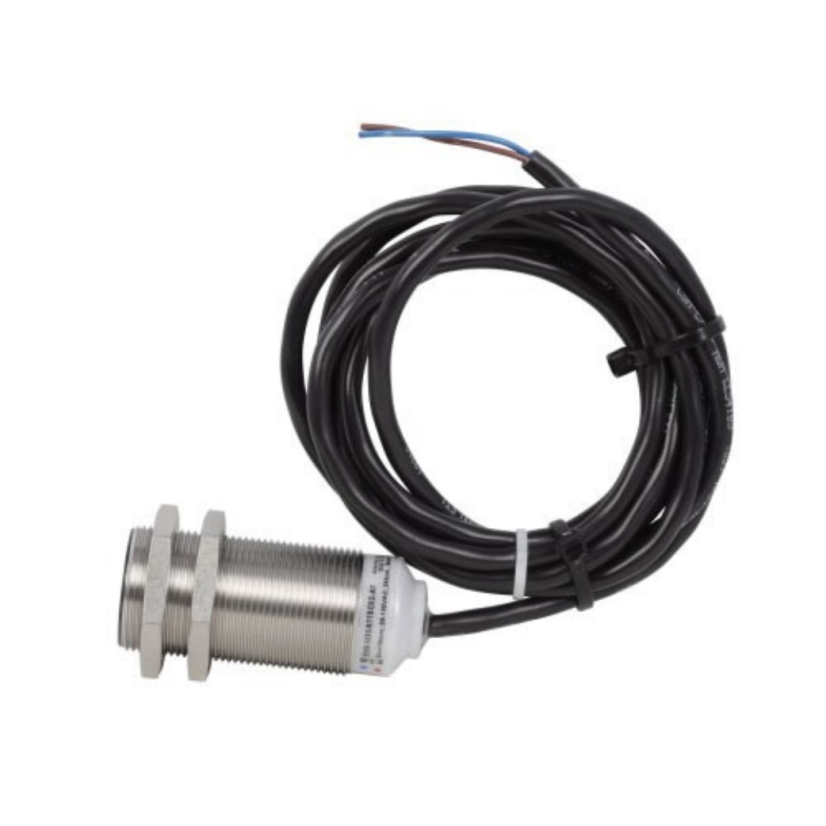

EATON E59-M30C129A01-A2 iProx 2-Wire Tubular Unshielded Proximity Sensor, Inductive, 1NC Contact, 20 to 132 V AC
Cutler-Hammer Series E59-M30C129A01-A2
EATON E59-M30C129A01-A2 iProx 2-Wire Tubular Unshielded Proximity Sensor, Inductive, 1NC Contact, 20 to 132 V ACNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #E59-M30C129A01-A2
Werner Part #4009324
UPC782116183722
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #E59-M30C129A01-A2
Werner Part #4009324
UPC782116183722
Product Description
EATON Proximity Sensor, 2-Wire Tubular Unshielded, Series: iProx, Inductive Sensing Method, 29 mm Sensing Distance, End Sensing Position, <3 % Accuracy, 1NC Contact Configuration, 20 to 132 V AC, 300 mA, 3-Pin Dual Key Micro AC Connection, 30 mm Dia Size, NEMA 4/4X/6/6P/12/13/IP67/IP69K Enclosure, -40 to 158 deg F, Flush Mounting, 303 Stainless Steel, Environmental Conditions: 10 to 55 Hz, 1 mm Amplitude Vibration
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection Type3-Pin Dual Key Micro AC
Contact Configuration1NC
Country of OriginMX
Enclosure TypeNEMA 4/4X/6/6P/12/13/IP67/IP69K
ManufacturerEaton
Material303 Stainless Steel
Mounting TypeFlush
Package TypeEACH
SeriesiProx
Size30 mm Dia
Temperature Rating-40 to 158 deg F
Type / Style2-Wire Tubular Unshielded
Documents
Applications
Automotive, Machine Tool, Material Handling, Metalworking, Stationary Machinery, Equipment and In Factory Applications
Warranty
1 Year
Features
- Exclusive SmartSense technology performs band sensing, position sensing, background rejection and allows for adjustable sensing range
- The robust design is ideal for extreme temperature or environments with high pressure washdown
- The auto-configure output automatically detects the sensor's wiring configuration and shifts the sensor into NPN or PNP mode as required
- High noise immunity of 20 V/m prevents many problems associated with electrical noise
- 360 deg, dual color output LED indicator provides easy viewing and simplified machine troubleshooting
- Through unique, embedded programming features, the range can be adjusted and the unit can be set up for band sensing or background metal rejection
- Simple, yet powerful, programming tools and improved iProx software for Microsoft Windows and Windows mobile devices make customizing the iProx sensor easy
- Once an iProx custom program is developed by a controls engineer, sensors can be programmed at the EATON factory, so they arrive reconfigured to exact specifications required by the OEM
