Cutler-Hammer Series E26B2V4

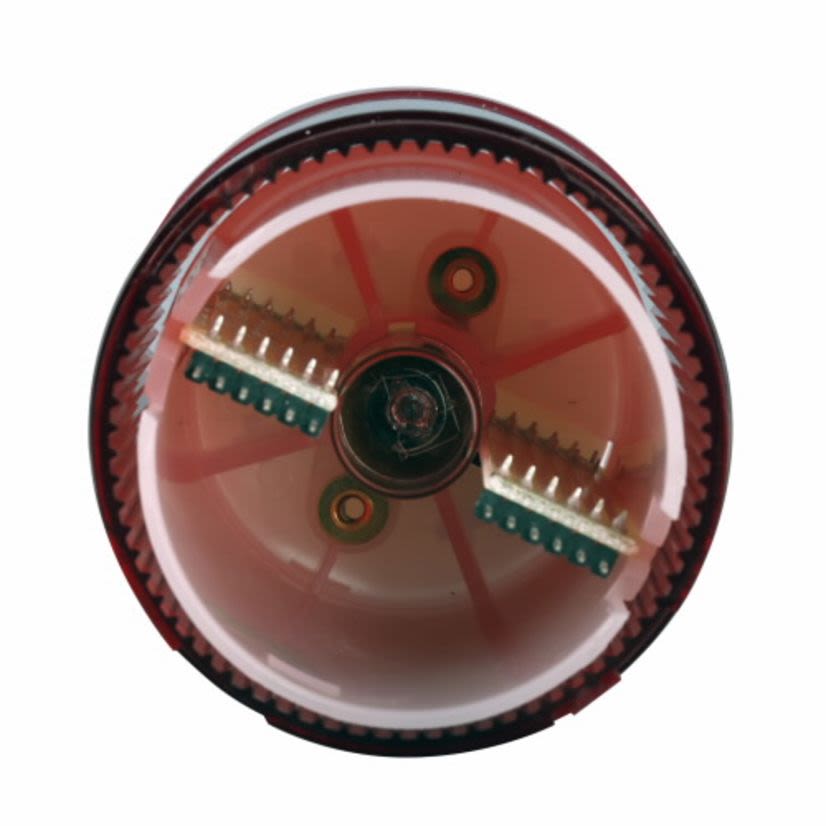

EATON E26B2V4 E26 Standard Stack Light Module, 120 V, Incandescent Lamp, 2.56 in Dia, Surface Mount, Red
Cutler-Hammer Series E26B2V4
EATON E26B2V4 E26 Standard Stack Light Module, 120 V, Incandescent Lamp, 2.56 in Dia, Surface Mount, RedNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #E26B2V4
Werner Part #558120
UPC782114124482
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #E26B2V4
Werner Part #558120
UPC782114124482
Product Description
EATON Stack Light Module, Standard, Series: E26, 120 V, 36 to 50 mA, 6 W Wattage, 2.56 in Diameter, Incandescent Lamp, Red, Steady Flash, 60 fpm Flash, 7000 hr Average Life, Surface Mounting, Wire Terminal, NEMA 4/4X/13/IP65 NEMA Rating, -4 to 140 deg F, Polycarbonate, 2.56 in L x 2.56 in W x 3.31 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Average Life7000 hr
ColorRed
Country of OriginBR
Diameter2.56 in
Dimensions2.56 in L x 2.56 in W x 3.31 in H
Flash Rate60 fpm
Flash TypeSteady
Lamp TypeIncandescent
ManufacturerEaton
MaterialPolycarbonate
Mounting TypeSurface
NEMA RatingNEMA 4/4X/13/IP65
Package Length2.56 in
Package TypeEACH
Package Weight0.01 lb
Package Width2.56 in
SeriesE26
Temperature Rating-4 to 140 deg F
Terminal TypeWire
TypeStandard
Type / StyleSTANDARD
Voltage Rating120 V
Wattage6 W
Applications
Electrical Assemblies, Panels and EOEMs, Automation, Logic Control Equipment and Stack Light Applications
Included
Lens, Diffuser and Lamp
Warranty
1 year
Features
- Light modules include lens diffusers which provide even illumination and eliminate hot spots
- To maximize illumination and light dispersion, incandescent units include an opal white diffuser while LED diffusers are clear
