Cutler-Hammer Series DT364FGK

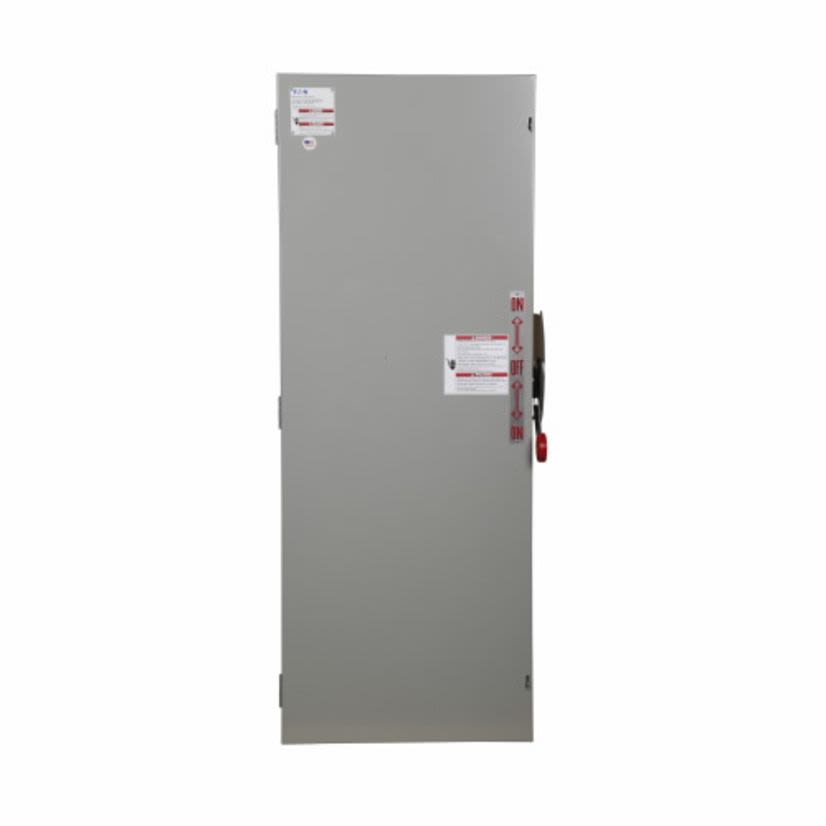

EATON DT364FGK Heavy Duty Fusible Double Throw Safety Switch, 600 V AC, 200 A, 50 hp, 150 hp, 3 Form C 3PDT Contact, 3 Poles
Cutler-Hammer Series DT364FGK
EATON DT364FGK Heavy Duty Fusible Double Throw Safety Switch, 600 V AC, 200 A, 50 hp, 150 hp, 3 Form C 3PDT Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Safety Switch, Heavy Duty Fusible Double Throw, Series: K Series, 600 V AC, 200 A, 50 hp, 150 hp, 1/3 ph, 3 Pole, 3 Wires, 100 kA Short Circuit Current Rating, 3 Form C 3PDT, Class H Insulation, NEMA 1, 11.26 in L x 19.15 in W x 51.36 in H, Steel, Painted
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypePivot/Toggle Handle
Connection TypeLoad Lug
Country of OriginUS
Dimensions11.26 in L x 19.15 in W x 51.36 in H
Enclosure TypeNEMA 1
FinishPainted
FrameQ-Line
Frequency Rating50/60 Hz
Horsepower50 hp, 150 hp
Insulation TypeClass H
Interrupt Rating10 kA
ManufacturerEaton
MaterialSteel
Mounting TypePlug-In
Number of Poles3
Number of Wires3
Package TypeEACH
Phase1/3
SeriesK Series
Short Circuit Current Rating100 kA
Size of Wire8 to 3 AWG
Temperature Rating10 to 50 deg C
Trip TypeNon-Interchangeable Thermal Magnetic/LI
TypeHeavy Duty Fusible Double Throw
Type / StyleDouble Throw Fusible Heavy Duty
Voltage600 VAC
Documents
Applications
Commercial, Institutional Buildings, Control, Power Distribution, Residential and Indoor Applications
Warranty
1 year
Features
- Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
- Visible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- Complete accessory and renewal parts data shown on inner door label
- Meets stringent UL 98 standards for safety, durability and reliability
- Without neutral
- 50/150 hp at 600 VAC, 40 hp at 250 VDC hp rating
