Cutler-Hammer Series DT324URK

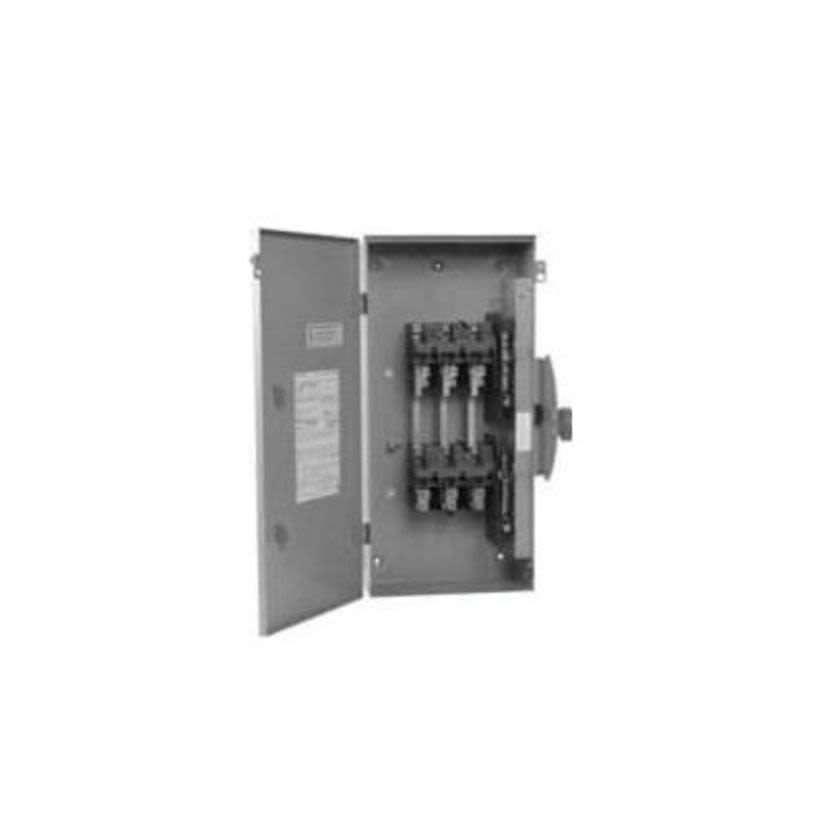

EATON DT324URK K Series Heavy Duty Non-Fusible Rainproof Safety Switch, 240 V AC/250 V DC, 200 A, 3 Form C 3PDT Contact, 3 Poles
Cutler-Hammer Series DT324URK
EATON DT324URK K Series Heavy Duty Non-Fusible Rainproof Safety Switch, 240 V AC/250 V DC, 200 A, 3 Form C 3PDT Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Safety Switch, Heavy Duty Non-Fusible Rainproof, Series: K Series, 240 V AC/250 V DC, 200 A, 3 Phase, 3 Poles, 3 Wires, 100 kA Short Circuit, 3 Form C 3PDT Contact Form, NEMA 3R Enclosure, 11.26 x 19.15 x 37.69 in Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Applications
Warranty
Features
Attributes
Breaker TypeTHQL/THQP
Country of OriginUS
Dimensions11.26 x 19.15 x 37.69 in
Enclosure Box SizeNEMA R2A
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
Interrupt Rating22 kA
ManufacturerEaton
MaterialSteel
Mounting TypePlug-In
Number of Circuits6
Number of Poles3
Number of Spaces6
Number of Wires3
Package Height37.69 in
Package Length11.26 in
Package TypeEACH
Package Weight80 lb
Package Width19.15 in
Phase3
SeriesK Series
Short Circuit Current Rating100 kA
Size of Wire6 to 1 AWG
TypeHeavy Duty Non-Fusible Rainproof
Type / StyleHeavy Duty Non-Fusible Rainproof
Voltage240 VAC/250 VDC
Wiring Configuration3-Wire
Documents
Applications
Power Distribution, Industrial, Light Commercial, Residential and Agricultural Applications
Warranty
1 year
Features
- Clearly visible, palm fitting red handle allows users to easily see the handle position (ON-OFF) from a distance and provides for easy operation
- Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- 100% rated device means the switch may be used continuously up to its rated current
- Meets stringent UL 98 standards for safety, durability and reliability
