Cutler-Hammer Series DH364UGK

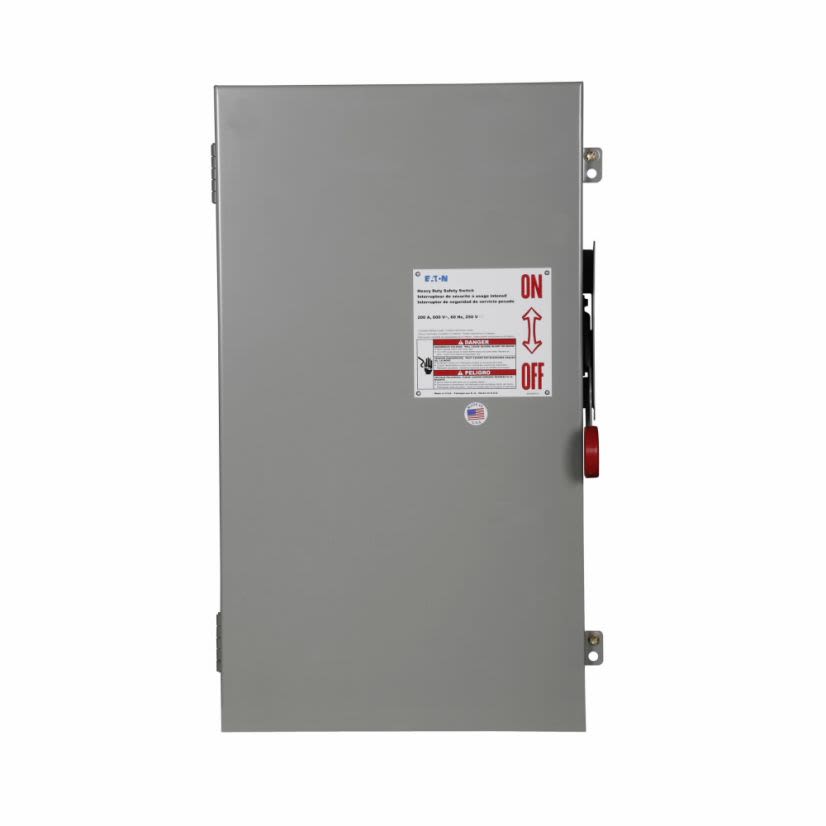

Cutler-Hammer DH364UGK K Series Non-Fusible Heavy Duty Safety Disconnect Switch, 600 V AC, 200 A, 15 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DH364UGK
Cutler-Hammer DH364UGK K Series Non-Fusible Heavy Duty Safety Disconnect Switch, 600 V AC, 200 A, 15 hp, 3PST Contact, 3 PolesIn Stock: 12more info
|
BrandCutler-Hammer Series
MFG #DH364UGK
Werner Part #24589
UPC782113206806
In Stock: 12more info
|
BrandCutler-Hammer Series
MFG #DH364UGK
Werner Part #24589
UPC782113206806
Product Description
Cutler-Hammer Heavy Duty Safety Disconnect Switch, Non-Fusible, Series, 600, Amperage Rating V AC, A 200, 15, Phase hp, Number of Poles, 3 Wires, Short Circuit Current Rating, kA 200, 3PST, Actuator Type, Enclosure Type, Surface Mount, Terminal Type, Dimensions, Steel, Color, Painted
Attributes
Documents
Applications
Features
Attributes
Connection TypeLine/Load
Country of OriginUS
Dimensions10 in L x 15.52 in W x 9.5 in H
Enclosure TypeNEMA 1
FinishPainted
FrameF
Frequency Rating50/60 Hz
Horsepower15 hp
Interrupt Rating14 kAIC at 480 VAC/18 kAIC at 240 VAC
ManufacturerEaton
MaterialSteel
Number of Poles3
Number of Wires3
Phase3
SeriesK Series
Short Circuit Current Rating200 kA
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic
TypeNon-Fusible
Type / StyleSafety Switch
Documents
Applications
Commercial, Institutional and Industrial Applications
Features
- Clearly visible, palm fitting red handle allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
- Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- 100% rated device means the switch may be used continuously up to its rated current
- Meets stringent UL 98 standards for safety, durability and reliability
