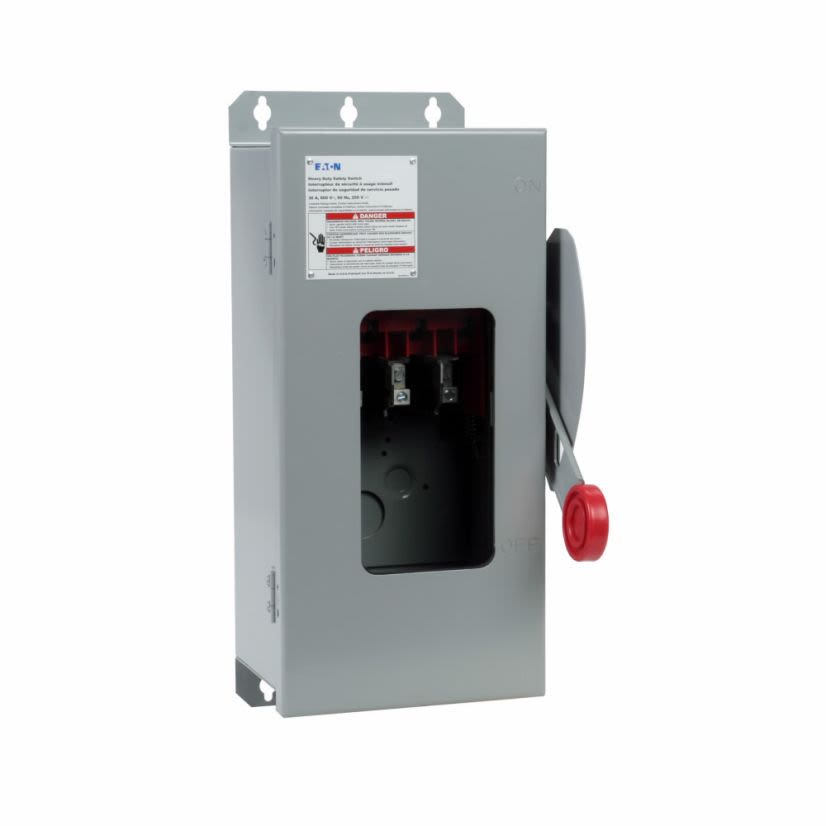

Cutler-Hammer Series DH361UDKW
EATON DH361UDKW Heavy Duty Non-Fusible Single Throw Safety Switch With Upper Viewing Window, 600 V AC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DH361UDKW
EATON DH361UDKW Heavy Duty Non-Fusible Single Throw Safety Switch With Upper Viewing Window, 600 V AC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 3PST Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: K Series, 600 V AC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST, NEMA 12, 10.25 in L x 8.76 in W x 14.14 in H, Steel, Galvanized/Painted
Attributes
Documents
Applications
Features
Attributes
Actuator TypeFront/Side Handle
Country of OriginUS
Dimensions10.25 in L x 8.76 in W x 14.14 in H
Enclosure TypeNEMA 12
FinishGalvanized/Painted
Horsepower5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp
ManufacturerEaton
MaterialSteel
Mounting TypeDIN Rail/Panel
Number of Poles3
Number of Wires3
Package TypeEACH
Phase1/3
SeriesK Series
Short Circuit Current Rating50/65 kA
Temperature Rating-20 to 70 deg C
TypeHeavy Duty Non-Fusible Single Throw
Type / StyleHeavy Duty Non-Fusible Single Throw
Voltage600 VAC
Applications
Commercial, Institutional Buildings, Control, Power Distribution and Harsh Environment Applications
Features
- Used to open or close a circuit
- Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
- Fusible safety switches provide a means to manually open and close a circuit and over current protection by means of installed fuses
- Also commonly referred to as a disconnect switch or disconnect
- Easy to install
- Ample wiring space
- Non-fusible configuration
- For 2-pole applications, use outside pole of 3-poles switch
- Can be field modified to meet NEMA 3R rainproof requirements when a factory provided drain hole is opened
- Painted steel enclosure
- Upper viewing window
- 7-1/2 hp at 480 VAC/10 hp at 600 VAC TD 1-phase, 10 hp at 240 VAC/20 hp at 480 VAC/30 hp at 600 VAC TD 3-phase, 5 hp at 250 VDC maximum hp rating
