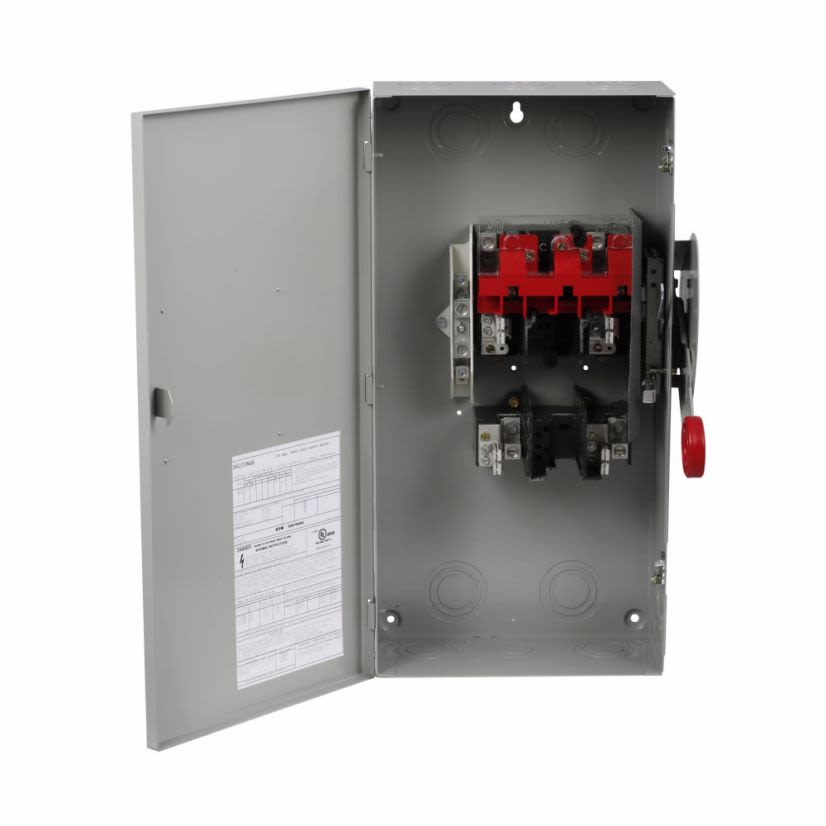

Cutler-Hammer Series DH323FGK

EATON DH323FGK K Series Fusible Single Throw Heavy Duty Safety Switch, 240 V AC, 100 A, 7-1/2 hp, 15 hp, 30 hp, 20 hp, 3PST Contact, 3 Poles
EATON DH323FGK K Series Fusible Single Throw Heavy Duty Safety Switch, 240 V AC, 100 A, 7-1/2 hp, 15 hp, 30 hp, 20 hp, 3PST Contact, 3 Poles

Cutler-Hammer Series DH323FGK

EATON DH323FGK K Series Fusible Single Throw Heavy Duty Safety Switch, 240 V AC, 100 A, 7-1/2 hp, 15 hp, 30 hp, 20 hp, 3PST Contact, 3 Poles
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #DH323FGK

Werner Part #520163

UPC782113206240

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #DH323FGK

Werner Part #520163

UPC782113206240

Product Description

EATON Heavy Duty Safety Switch, Fusible Single Throw, Series: K Series, 240 V AC, 100 A, 7-1/2 hp, 15 hp, 30 hp, 20 hp, 1/3 ph, 3 Pole, 3 Wires, 100 kA Short Circuit, 3PST Contact Form, Class H Insulation, NEMA 1 Enclosure, 22.5 in L x 12.75 in W x 21.99 in H Dimensions, Steel, Painted
Attributes
Connection TypeLine/Load
Country of OriginUS
Dimensions22.5 in L x 12.75 in W x 21.99 in H
Enclosure TypeNEMA 1
FinishPainted
FrameEG
Frequency Rating50/60 Hz
Horsepower7-1/2 hp, 15 hp, 30 hp, 20 hp
Insulation TypeClass H
Interrupt Rating35 kA at 240 VAC, 25 kA at 415 VAC, 25 kA at 480 VAC, 18 kA at 600Y/347 VAC
ManufacturerEaton
MaterialSteel
Number of Poles3
Number of Wires3
Package Height8.7 IN
Package Length22.5 in
Package TypeEACH
Package Weight20.5 lb
Package Width12.7 in
Phase1/3
SeriesK Series
Short Circuit Current Rating100 kA
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic
TypeFusible Single Throw
Type / StyleHeavy Duty Fusible Single Throw
Voltage240 VAC
