Cutler-Hammer Series DH322NGK

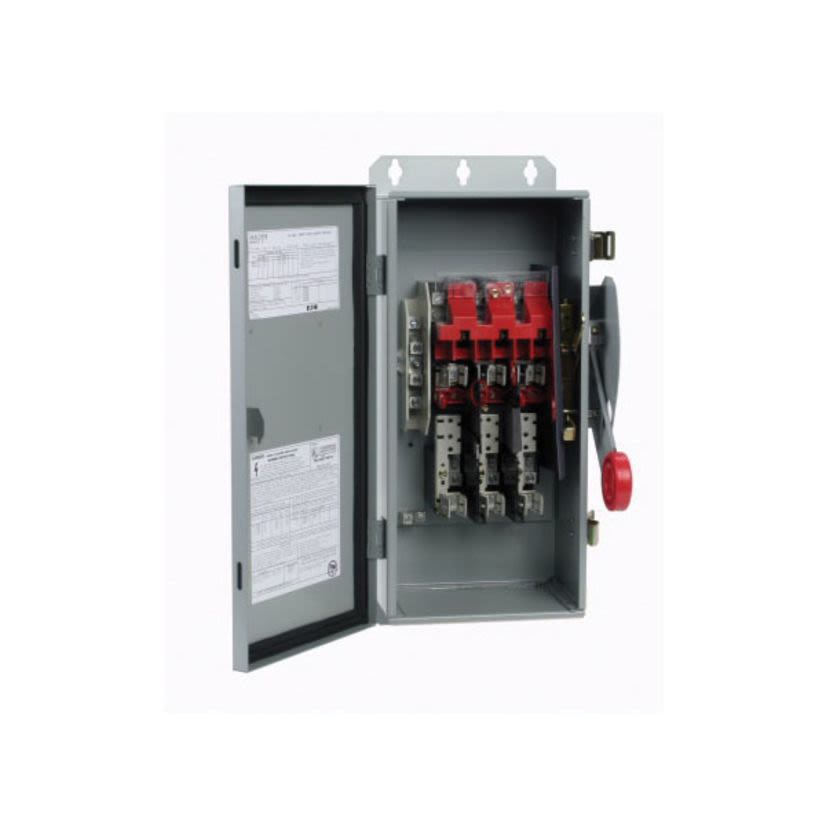

EATON Cutler-Hammer Series DH322NGK K Series Fusible Heavy Duty Single Throw Safety Switch With Neutral, 240 VAC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, TPST Contact, 3 Poles
Cutler-Hammer Series DH322NGK
EATON Cutler-Hammer Series DH322NGK K Series Fusible Heavy Duty Single Throw Safety Switch With Neutral, 240 VAC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, TPST Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Cutler-Hammer Series Safety Switch, Fusible Heavy Duty Single Throw, Series: K Series, 240 VAC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 1/3 ph, 3 Pole, 4 Wires, 100 kA Short Circuit, TPST Contact Form, Class H Insulation, NEMA 1 Enclosure, 16-1/2 in L x 9-1/2 in W x 16 in H Dimensions, Steel, Painted
Attributes
Documents
Features
Attributes
ColorBlack
Country of OriginUnited States
Dimensions3.6 in L x 4 in W x 3.32 in H
Enclosure TypeNEMA 1
FinishTin Plated
Horsepower3 hp, 7-1/2 hp, 10 hp, 15 hp
Insulation TypeClass H
ManufacturerEaton Corp
MaterialAluminum/Thermoplastic
Number of Poles2
Number of Wires4
Phase1/3
Primary Connection/Pole(1) 3/8-16 x 1-1/8 in Stud
Secondary Connection/Pole(1) 3/8-16 x 1-1/8 in Stud
Series163
Short Circuit Current Rating10 kA
TypeBarrier
Type / StyleFusible Heavy Duty Single Throw
Voltage240 VAC
Documents
Features
Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operationVisible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact lifeTriple padlocking capability increases personnel safetyInterlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessaryClear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shieldComplete accessory and renewal parts data shown on inner door labelMeets stringent UL 98 standards for safety, durability and reliabilityAccepts class h fuses3 hp at 240 VAC standard 1-phase, 7-1/2 hp at 240 VAC standard 3-phase, 10 hp at 240 VAC TD 1-phase, 15 hp at 240 VAC TD 3-phases and 10 hp at 250 VDC maximum hp rating
