Cutler-Hammer Series DH322FRK

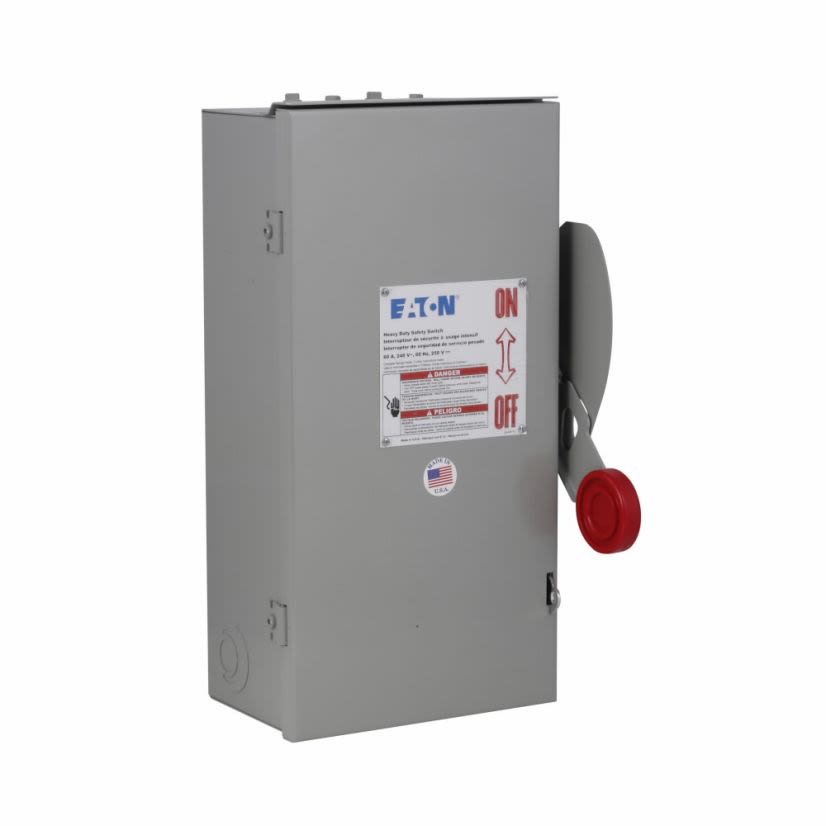

EATON DH322FRK K Series Heavy Duty Fusible Rainproof Single Throw Safety Switch, 240 V AC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DH322FRK
EATON DH322FRK K Series Heavy Duty Fusible Rainproof Single Throw Safety Switch, 240 V AC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 3PST Contact, 3 PolesIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
EATON Safety Switch, Heavy Duty Fusible Rainproof Single Throw, Series: K Series, 240 V AC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 1/3 ph, 3 Pole, 3 Wires, 100 kA Short Circuit, 3PST Contact Form, Class H Insulation, NEMA 3R Enclosure, 16.5 in L x 9.5 in W x 16.27 in H Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeHandle
Connection TypeLoad
Country of OriginUS
Dimensions16.5 in L x 9.5 in W x 16.27 in H
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
FrameF
Frequency Rating50/60 Hz
Horsepower3 hp, 7-1/2 hp, 10 hp, 15 hp
Insulation TypeClass H
Interrupt Rating22 kA
ManufacturerEaton
MaterialSteel
Mounting TypeBolted-On
Number of Poles3
Number of Wires3
Package Height16.27 in
Package Length16.5 in
Package TypeEACH
Package Weight16 lb
Package Width9.5 in
Phase1/3
SeriesK Series
Short Circuit Current Rating100 kA
Size of Wire4 to 4/0 AWG
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeHeavy Duty Fusible Rainproof Single Throw
Type / StyleHeavy Duty Fusible Rainproof Single Throw
Voltage240 VAC
Applications
Commercial, Institutional Buildings, Control, Power Distribution and Residential Applications
Warranty
1 year
Features
- Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
- Visible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- Complete accessory and renewal parts data shown on inner door label
- Meets stringent UL 98 standards for safety, durability and reliability
- Accepts class H fuses
- 15 hp at 240 VAC standard 1-phase, 25 hp at 240 VAC standard 3-phase, 15 hp at 240 VAC TD 1-phase, 60 hp at 240 VAC TD 3-phase, 40 hp at 250 VDC maximum horsepower rating
