Cutler-Hammer Series DG1-345D6FB-C21C

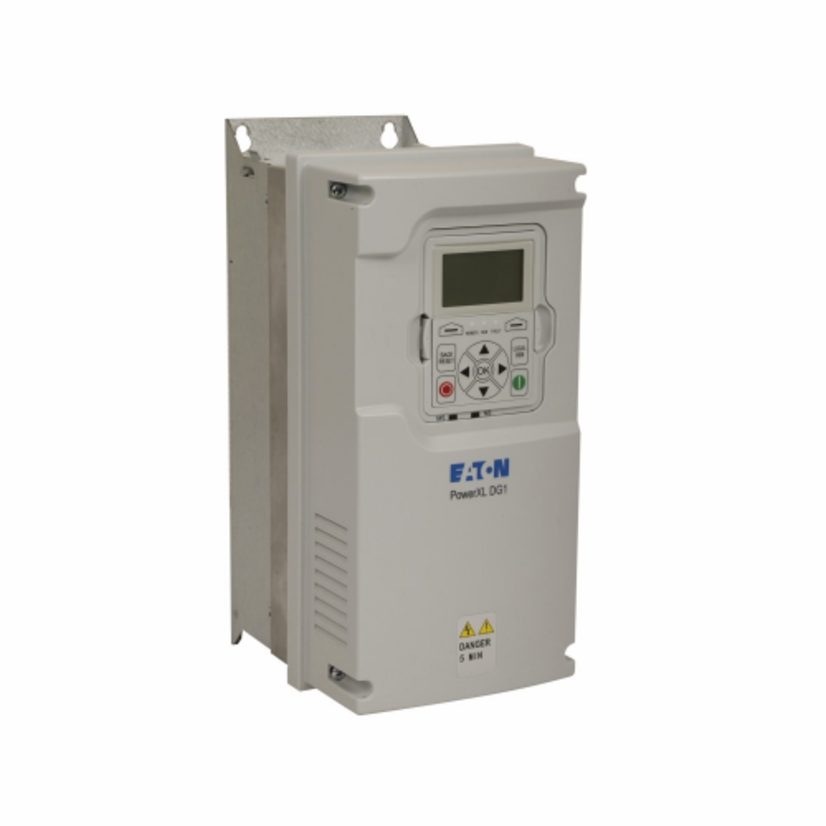

EATON PowerXL DG1-345D6FB-C21C 3-Phase Adjustable Variable Frequency Drive, 230/208 to 240 V AC, 5.6 A, 3 hp, 9-1/2 in W x 17-1/2 in D
Cutler-Hammer Series DG1-345D6FB-C21C
EATON PowerXL DG1-345D6FB-C21C 3-Phase Adjustable Variable Frequency Drive, 230/208 to 240 V AC, 5.6 A, 3 hp, 9-1/2 in W x 17-1/2 in DNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DG1-345D6FB-C21C
Werner Part #4053286
UPC786685878904
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DG1-345D6FB-C21C
Werner Part #4053286
UPC786685878904
Product Description
EATON PowerXL Variable Frequency Drive, 3-Phase Adjustable, Series: DG1, 230/208 to 240 V AC, 5.6 A, 3 hp, 9-1/2 in Width, 17-1/2 in Depth, 13 in Height, NEMA 1/IP21 Enclosure, LCD Display, Panel Mounting
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Country of OriginDO
Depth17-1/2 in
Display TypeLCD
Enclosure TypeNEMA 1/IP21
Height13 in
Horsepower3 hp
ManufacturerEaton
Mounting TypePanel
Package Length17.5 in
Package TypeEACH
Package Weight16 lb
Package Width9.5 in
SeriesDG1
Type / Style3-Phase Adjustable
Width9-1/2 in
Documents
Applications
Commercial, Institutional Buildings, Structures - Motor and Power Control Equipment Applications
Included
Trim Cover and Keypad
Warranty
24 months
Features
- Brake chopper standard on frames 0, 1, 2, 3
- Dual overload ratings 110% variable torque (IL) and 150% constant torque (IH)
- Open type/IP00 or IP20 or type 1/IP21 or type 12/ IP54 enclosures available
- Integrated common mode reduction 5% DC link choke with input surge protection
- EMI/RFI filters standard on all drives meets EMC Cat C2
- Real time clock supports calendaring and PLC functionality
- Graphic LCD display and keypad supports simple menu navigation as well as on screen diagnostics and troubleshooting
- Local/remote operation from keypad and 2-configurable soft keys
- Conformal coated control and power boards standard
- Control logic can be powered from an external auxiliary control panel, internal drive functions and fieldbus if necessary
- Standard I/O 8DI, 1DO, 2AI, 2AO and 2FC, 1FA relays
- Standard communications Ethernet/IP, Modbus TCP and RS-485 Modbus RTU, BACnet MS/TP
- Seamless integration into Ethernet/IP networks via EIP-Assist I/O tag generation tool
- 2-expansion slots intended to support additional I/O or communication protocols as necessary
- Quick-disconnect terminals for I/O connections supports fast easy installation
- Safe torque Off (STO) built-in with functional safety SIL1 certification
- Active energy control minimizes energy losses in your motor, resulting in industry leading energy efficiency for your application
- Quick-start wizard upon initial power-up supports fast, easy installation
- Standard applications standard, multi-pump and fan control, Multi-PID and multi-purpose
- Copy/paste functionality on drive keypad allows for fast setup of multiple drives
