Cutler-Hammer Series D4PR2A

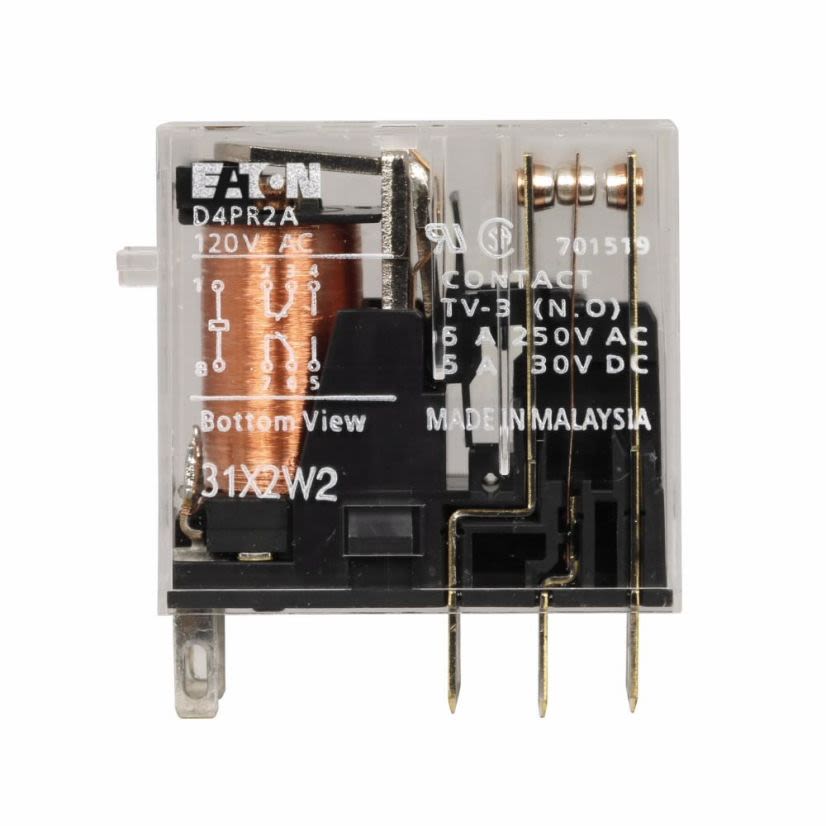

EATON Cutler-Hammer Series D4PR2A Standard General Purpose Relay
Cutler-Hammer Series D4PR2A
EATON Cutler-Hammer Series D4PR2A Standard General Purpose RelayNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #D4PR2A
Werner Part #3767806
UPC78211416064
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #D4PR2A
Werner Part #3767806
UPC78211416064
Product Description
EATON Cutler-Hammer Series EATON General Purpose Relay, Standard, Series: D4 Series, 5 A, 120 VAC Coil, DPDT Contact Form, 2 Pole, DIN Rail/Panel Mounting, Plug-In Terminal, 1.14 in L x 0.51 in W x 1.1 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Coil Voltage120 VAC
Contact FormDPDT
Country of OriginChina
Dimensions1.14 in L x 0.51 in W x 1.1 in H
ManufacturerEaton
Mounting TypeDIN Rail/Panel
Number of Poles2
SeriesD4 Series
Terminal TypePlug-In
Documents
Applications
Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
Features
- The D4 series is a slim form relay designed to fit into tight spaces
- The retaining clip is built-in to the socket to provide easy and secure assembly
- Socket has built-in hold down clip
- 2 A, 250 VAC/3A, 30 VDC inductive full load
- 5 A, 240 VAC, 30 VDC resistive load
- 380 VAC, 125 VDC maximum voltage
- 1/4 in flat blade terminal style
Specifications
- RoHS Compliant
- UL File No. E1491
- UL File No. E65657
- CSA File No. LR701519
- cULus Recognized
- CE Certified
Warranty
1 year
