Cutler-Hammer Series XTCE025C10T

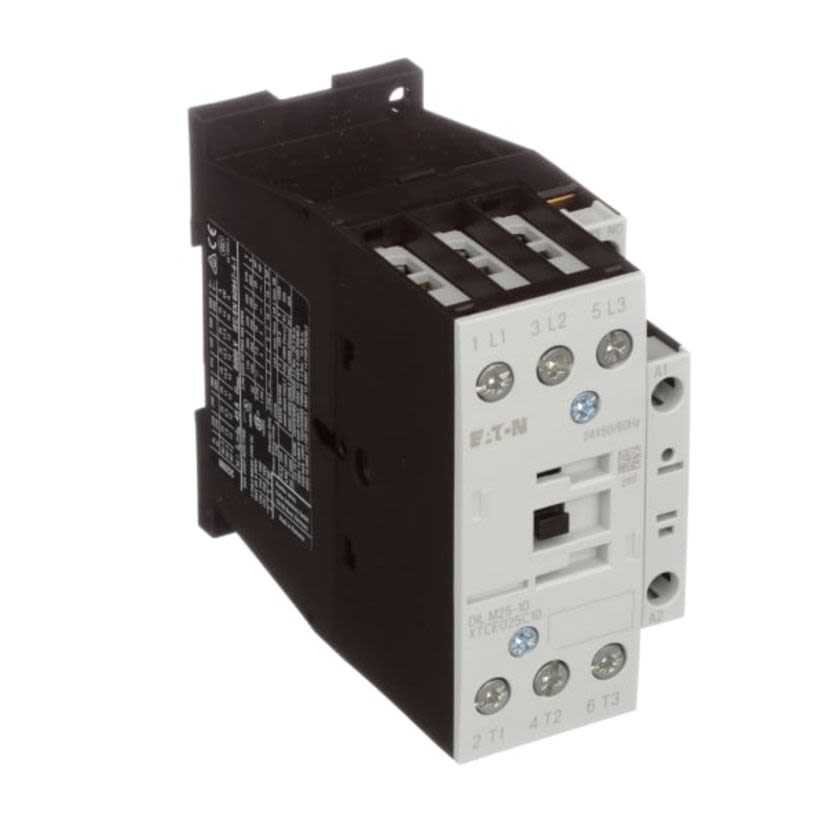

EATON XTCE025C10T Full Voltage Non-Reversing IEC Contactor, 24 V AC V Coil, 25 A, 1NO Contact, 3 Poles
Cutler-Hammer Series XTCE025C10T
EATON XTCE025C10T Full Voltage Non-Reversing IEC Contactor, 24 V AC V Coil, 25 A, 1NO Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTCE025C10T
Werner Part #3966120
UPC4015082771362
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTCE025C10T
Werner Part #3966120
UPC4015082771362
Product Description
EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 24 V AC Coil, 25 A Maximum Load Current, 2 hp at 115 VAC 1 ph, 3 hp at 200 VAC 1 ph, 5 hp at 230 VAC 1 ph, 7-1/2 hp at 200 VAC 3 ph, 10 hp at 230 VAC 3 ph, 15 hp at 460 VAC 3 ph, 20 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 45 mm Size, Screw Terminal, DIN Rail/Panel Mounting, 4 x 3-1/2 x 1-1/2 in Dimensions
Attributes
Documents
Applications
Features
Attributes
Coil Power Rating2 hp at 115 VAC 1 ph, 3 hp at 200 VAC 1 ph, 5 hp at 230 VAC 1 ph, 7-1/2 hp at 200 VAC 3 ph, 10 hp at 230 VAC 3 ph, 15 hp at 460 VAC 3 ph, 20 hp at 575 VAC 3 ph
Coil Voltage24 V AC
Contact Configuration1NO
Country of OriginRO
Dimensions4 x 3-1/2 x 1-1/2 in
Frequency Rating50/60 Hz
ManufacturerEaton
Maximum Load Current25 A
Mounting TypeDIN Rail/Panel
Number of Poles3
Package TypeEACH
SeriesXT Series
Size45 mm
Terminal TypeScrew
Applications
Electrical Assemblies, Panels and EOEMs and Other Applications
Features
- 7.5 kW at 220/230 VAC 3 ph, 11 kW at 380/400 VAC 3 ph, 14.5 kW at 415 VAC 3 ph 50/60 Hz coil power rating
