Cutler-Hammer Series CHF130

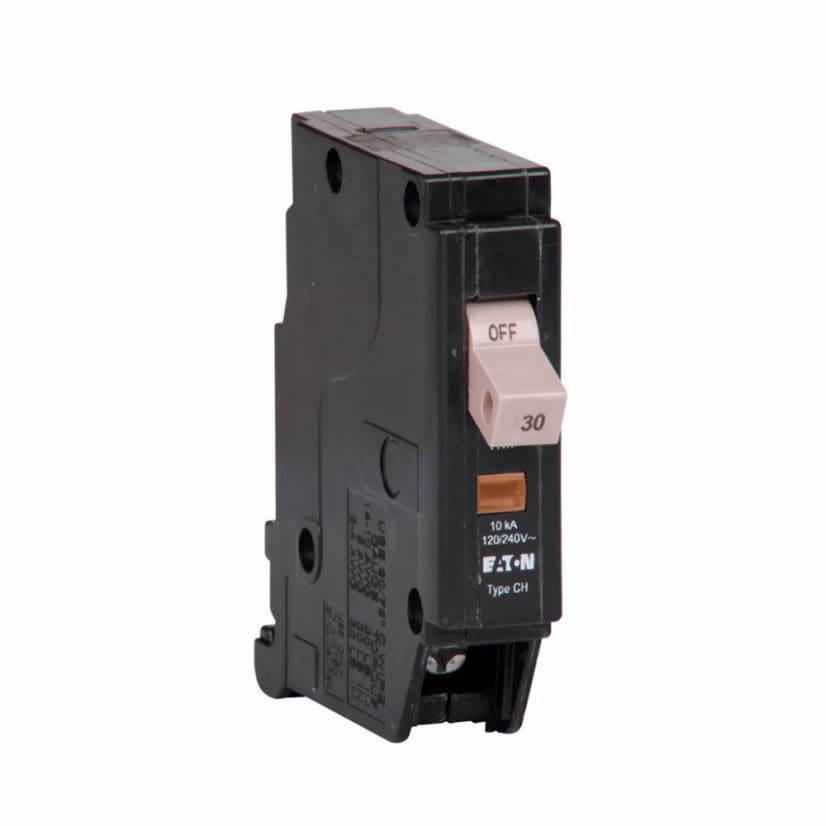

EATON CHF130 Standard Circuit Breaker With Mechanical Trip Flag, 120/240 V AC, 30 A, 10 kA Interrupt, 1 Poles
Cutler-Hammer Series CHF130
EATON CHF130 Standard Circuit Breaker With Mechanical Trip Flag, 120/240 V AC, 30 A, 10 kA Interrupt, 1 PolesIn Stock: 31more info
|
In Stock: 31more info
|
Product Description
EATON Circuit Breaker, Standard, 120/240 V AC, 30 A, 10 kA Interrupt, CHF Frame, 1 Pole, 1 ph, Toggle Handle Actuator, Box Lug, (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 3.2 in L x 0.7 in W x 2.6 in H
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeToggle
Connection TypeBox Lug
Country of OriginDO
Dimensions3.2 in L x 0.7 in W x 2.6 in H
Enclosure Box Size24-11/16 in H x 14 in W x 3-3/4 in D
Enclosure TypeNEMA 1
FrameCHF
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypeFlush
Number of Circuits24
Number of Poles1
Phase1
Size of Wire6 to 2/0 AWG Cu/Al
Temperature Rating60 to 75 deg C
Trip TypeThermal Magnetic
TypeStandard
Type / StyleSTANDARD
Voltage120/240 VAC
Applications
For circuit protection, residential type CH load centers and meter breaker panels, light commercial distribution panels, pool panels, residential transfer switch panels and various OEM applications
Warranty
Limited Lifetime
Features
- (1) 14 to 8 AWG, (2) 14 to 10 AWG copper/aluminum wire
- Easy to install
- Easy to reset
- Best in class performance
- Circuit breaker is clearly marked identifying amperage, ratings and the brand
- Trip flag visibly indicates breaker status
- 3/4 in per pole
