Cutler-Hammer Series CHB250

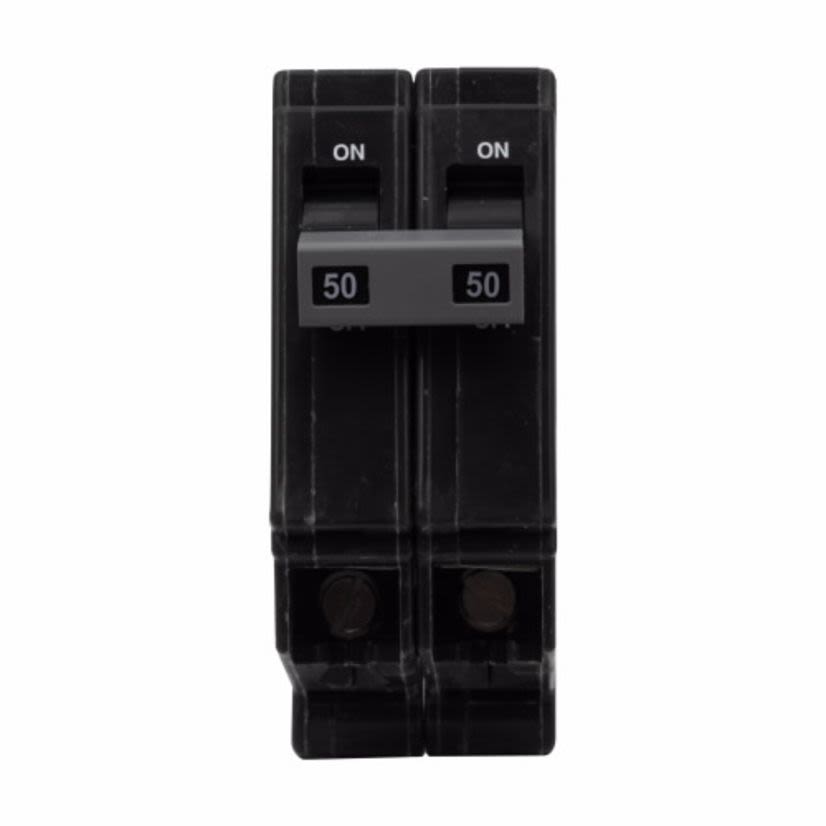

EATON CHB250 Type CHB Standard Molded Case Circuit Breaker, 120/240 V AC, 50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Cutler-Hammer Series CHB250
EATON CHB250 Type CHB Standard Molded Case Circuit Breaker, 120/240 V AC, 50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #CHB250
Werner Part #561931
UPC782113112503
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #CHB250
Werner Part #561931
UPC782113112503
Product Description
EATON Molded Case Circuit Breaker, Type CHB Standard, 120/240 V AC, 50 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, Box Lug Connection, 8 to 4 AWG Wire, Bolted-On Mounting, 60 to 75 deg C, 3.8 in L x 3.1 in W x 1.8 in H Dimensions
Attributes
Documents
Included
Features
Attributes
Actuator TypeHandle
Connection TypeBox Lug
Country of OriginDO
Dimensions3.8 in L x 3.1 in W x 1.8 in H
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypeBolt-On/Plug-In
Number of Poles2
Package Height3.5 in
Package Length3.8 in
Package TypeEACH
Package Weight1 lb
Package Width3.1 in
Phase1
Size of Wire8 to 4 AWG
Suitable For Use WithSpectraĆ¢āĀ¢ Series Panelboard
Temperature Rating60 to 75 deg C
Trip TypeThermal Magnetic
TypeType CHB Standard
Type / StyleType CHB Standard
Voltage120/240 VAC
Documents
Included
Contact Block Mounting Adapter
Features
- When combined with the mounting base, CHB breakers were also used for surface and DIN rail mount cable in cable out applications
- Type CHB breaker handles trip to a position between ON and off and require movement to full OFF to reset the breaker
- Contacts are sintered weld resistant silver tungsten
- Inverse time element thermal element tripping
- Copper aluminum wire
