Cutler-Hammer Series CH3RDF7M

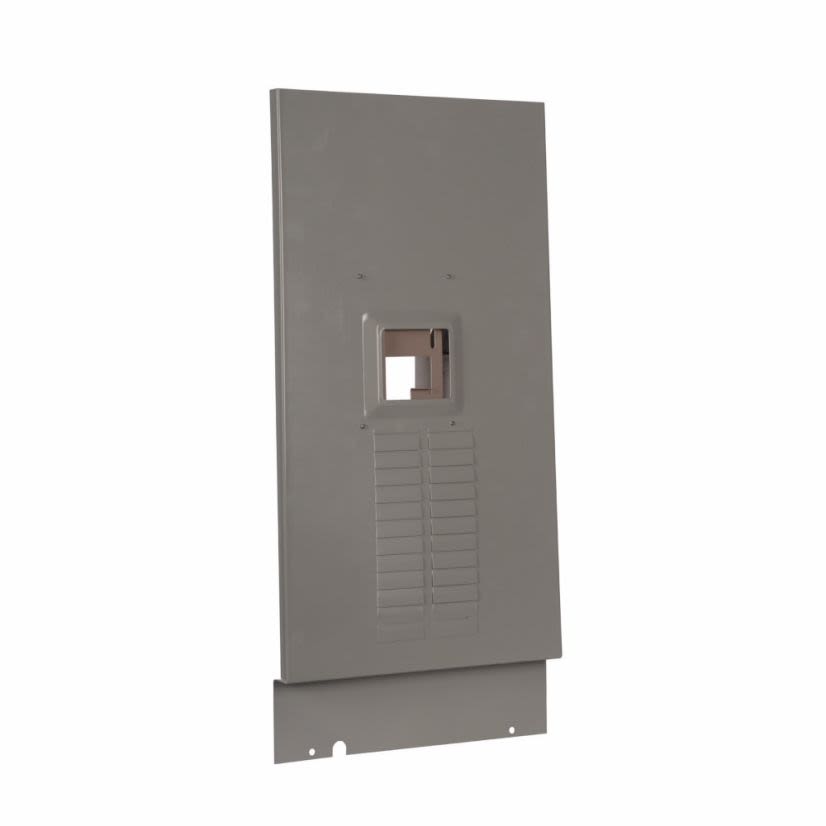

EATON CH3RDF7M Type B Mechanical Interlock Panel Cover, Flush Mount
Cutler-Hammer Series CH3RDF7M
EATON CH3RDF7M Type B Mechanical Interlock Panel Cover, Flush MountNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #CH3RDF7M
Werner Part #561752
UPC782113497051
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #CH3RDF7M
Werner Part #561752
UPC782113497051
Product Description
EATON Panel Cover, Type B Mechanical Interlock, Flush Mounting, For Use With: CHSPTELE/CHSPCABLE Type CH 3/4 in Load Center
Attributes
Documents
Applications
Warranty
Features
Attributes
Breaker TypeTHQL/THQP
Country of OriginUS
Dimensions14 in W x 3-3/4 in D x 26-7/16 in H
Enclosure TypeNEMA 1
Interrupt Rating65 kA
ManufacturerEaton
Mounting TypeFlush
Number of Circuits20
Number of Poles1
Number of Spaces20/24/12
Package Height1.6 in
Package Length24.9 in
Package TypeEACH
Package Weight3.8 lb
Package Width13.7 in
SeriesTLM
Size of Wire6 AWG to 250 kcmil
Suitable For Use WithCHSPTELE/CHSPCABLE Type CH 3/4 in Load Center
TypeType B Mechanical Interlock
Type / StyleType B Mechanical Interlock
Wiring Configuration3-Wire
Applications
Other
Warranty
Limited Lifetime
Features
- Covers mechanically interlock a main type CSR breaker with a type CH
