Cutler-Hammer Series CH16L125R

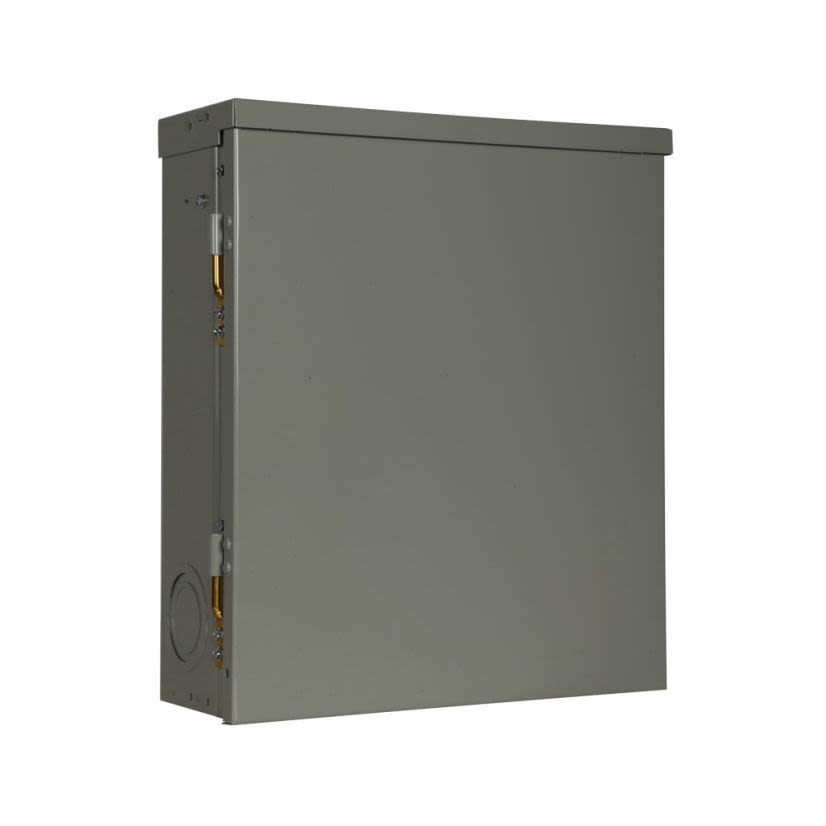

EATON CH16L125R 1-Phase Main Lug Load Center, 120/240 VAC, 125 A, 16 Poles
EATON CH16L125R 1-Phase Main Lug Load Center, 120/240 VAC, 125 A, 16 Poles

Cutler-Hammer Series CH16L125R

EATON CH16L125R 1-Phase Main Lug Load Center, 120/240 VAC, 125 A, 16 Poles
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #CH16L125R

Werner Part #536796

UPC782113097480

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #CH16L125R

Werner Part #536796

UPC782113097480

Product Description

EATON Main Lug Load Center, 1-Phase, 120/240 VAC, 125 A, 16 Pole, 16 Circuits, CH Breaker, Plug-On Breaker Mounting, 3-Wire Wiring Configuration, 16 Spaces, 6 to 2/0 AWG Wire, Surface/Plug-On Mount, NEMA 3R, NEMA B Enclosure Box, Metal Housing, 16.75 in L x 14.31 in W x 5.19 in H
Attributes
Actuator TypePivot/Toggle Handle
Breaker TypeCH
Connection TypeLoad Lug
Country of OriginUS
Dimensions16.75 in L x 14.31 in W x 5.19 in H
Enclosure Box SizeNEMA B
Enclosure TypeNEMA 3R
FrameQ-Line
Frequency Rating50/60 Hz
Housing MaterialMetal
Interrupt Rating22 kA
ManufacturerEaton
MaterialPlastic
Mounting TypeBolted-On
Number of Circuits16
Number of Poles16
Number of Spaces16
Package Height5.19 in
Package Length16.75 in
Package TypeEACH
Package Weight16 lb
Package Width14.31 in
Phase3
Size of Wire14 to 8 AWG, 12 to 8 AWG
Temperature Rating10 to 50 deg C
Trip TypeLI/Non-Interchangeable Thermal Magnetic
Type1-Phase
Type / Style1-Phase
Voltage120/240 VAC
Wiring Configuration3-Wire
