Cutler-Hammer Series CE15CNS3AB

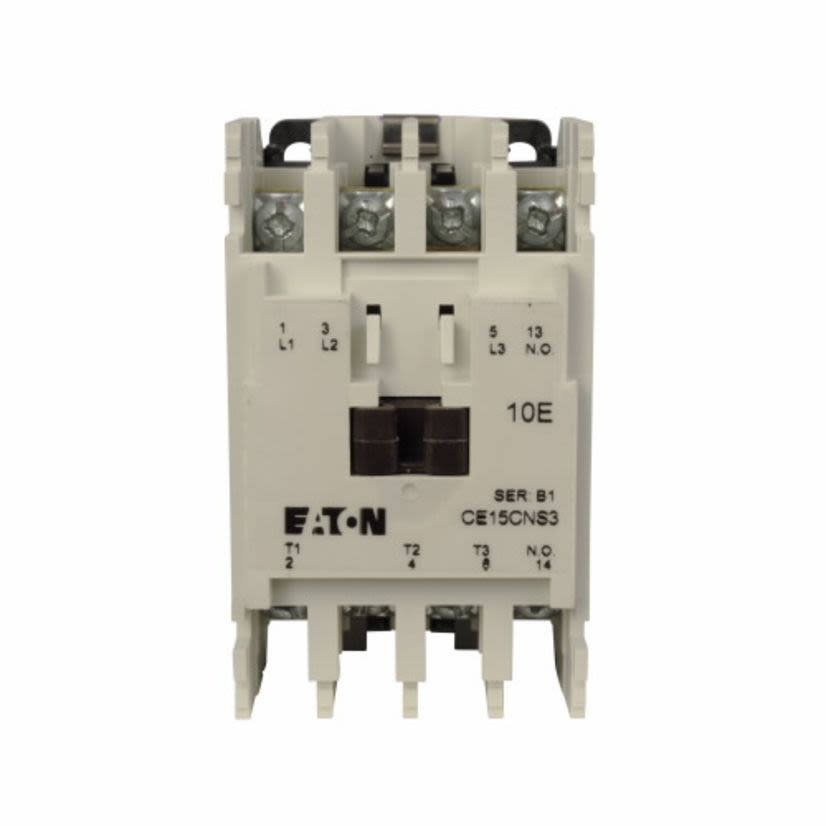

EATON CE15CNS3AB Freedom Non-Reversing IEC Contactor, 110/120 V AC V Coil, 12 A, 1NO Contact, 3 Poles
Cutler-Hammer Series CE15CNS3AB
EATON CE15CNS3AB Freedom Non-Reversing IEC Contactor, 110/120 V AC V Coil, 12 A, 1NO Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON IEC Contactor, Non-Reversing, Series: Freedom, 110/120 V AC Coil, 12 A Maximum Load Current, 1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, Auxiliary Contact, 1NO Contact Configuration, 1 Auxiliary Contacts, 45 mm Size, Screw Terminal, Open Enclosure, 3000000 Cycles Operating Cycles, -5 to 65 deg C Operating, Panel/Side Mounting, 3.25 in L x 1.8 in W x 2.96 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Power Rating1/2 hp
Coil Voltage110/120 V AC
Contact Configuration1NO
Contact FormAuxiliary
Country of OriginDO
Dimensions3.25 in L x 1.8 in W x 2.96 in H
Enclosure TypeOpen
Frequency Rating50/60 Hz
Full Load CurrentMax: 12 A
ManufacturerEaton
Maximum Load Current12 A
Mounting TypePanel/Side
Number of Auxiliary Contacts1
Number of Poles3
Operating Temperature-5 to 65 deg C
Package Length3.8 in
Package TypeEACH
Package Weight0.95 lb
Package Width4.1 IN
SeriesFreedom
Size45 mm
Terminal TypeScrew
Type / StyleC-Frame Non-Reversing
Applications
Electrical Assemblies, Panels and EOEMs Applications
Warranty
1 year
Features
- Temperature range 25 C to +60 C
- Uniform accessories for three-pole and four-pole contactors
- Double box terminals for reliable wiring of different cross-sections
- The contactors up to 38 A can be controlled directly from a PLC
- DC-operated devices with integrated suppressor circuits
