Cutler-Hammer Series CCV2100

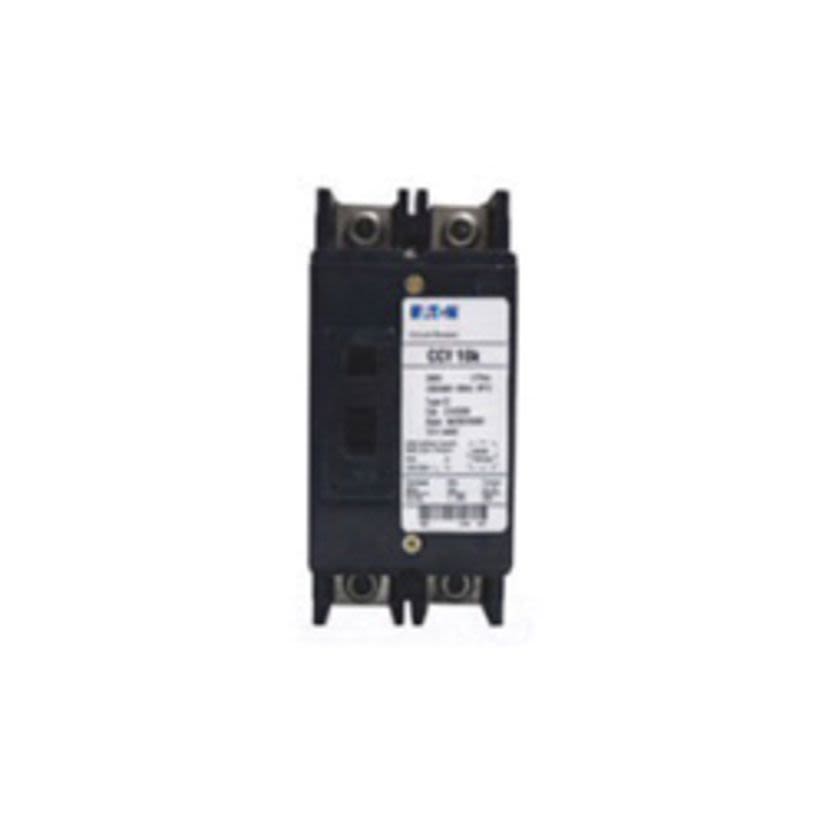

EATON CCV2100 Type CCV Tenant Main Circuit Breaker, 120/240 V AC, 100 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Cutler-Hammer Series CCV2100
EATON CCV2100 Type CCV Tenant Main Circuit Breaker, 120/240 V AC, 100 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Main Circuit Breaker, Type CCV Tenant, 120/240 V AC, 100 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, 2/0 AWG to 300 kcmil Copper/Aluminum Wire, 60 to 75 deg C, 7.7 in L x 4.5 in W x 5.4 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Country of OriginDO
Dimensions7.7 in L x 4.5 in W x 5.4 in H
Interrupt Rating10 kA
ManufacturerEaton
MaterialAluminum
Number of Poles2
Phase1
Size of Wire2/0 AWG to 300 kcmil
Suitable For Use WithC Series 3-Pole FD-Frame Molded Case Circuit Breaker
Temperature Rating60 to 75 deg C
Trip TypeThermal Magnetic
TypeType CCV Tenant
Type / StyleType CCV
Voltage120/240 VAC
Applications
Circuit Protection and Type ECC Unit Enclosure Applications
Warranty
1 year Commercial, Limited Lifetime Residential
Features
- 2/0 AWG to 300 kcmil copper aluminum at 60 to 75 deg C wire range
