Bussmann Series FRS-R-200

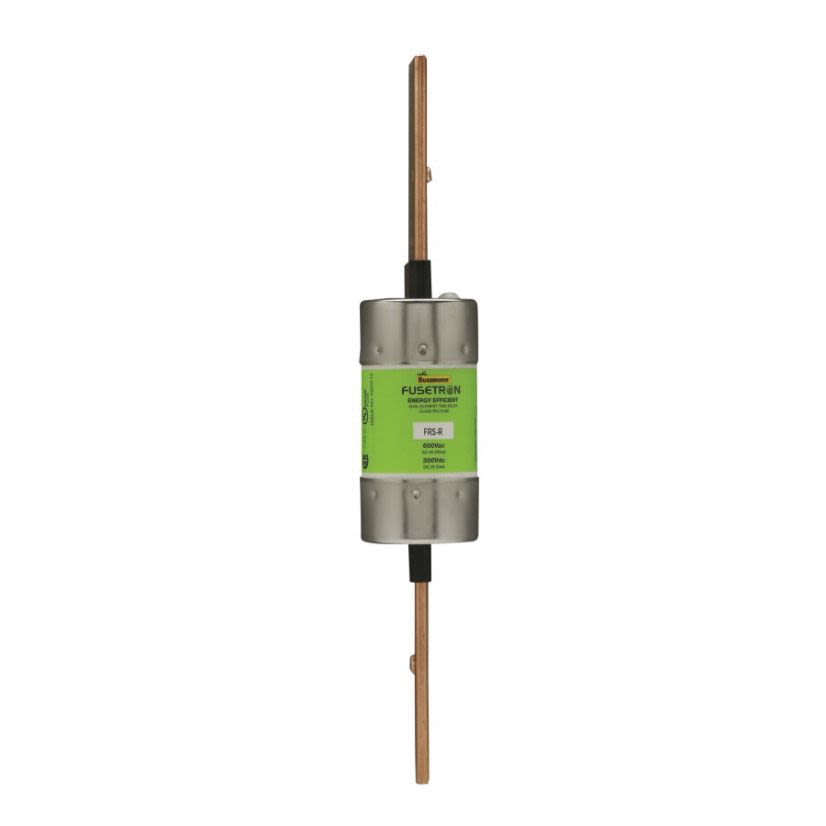

Bussmann Fusetron FRS-R-200 Current Limiting Time Delay Renewable Fuse, 200 A, 600 V AC/300 V DC, 200/20 kAIC Interrupt, RK5 Class, Cartridge Body
Bussmann Series FRS-R-200
Bussmann Fusetron FRS-R-200 Current Limiting Time Delay Renewable Fuse, 200 A, 600 V AC/300 V DC, 200/20 kAIC Interrupt, RK5 Class, Cartridge BodyIn Stock: 16more info
|
BrandBussmann Series
MFG #FRS-R-200
Werner Part #21964
UPC051712508483
In Stock: 16more info
|
BrandBussmann Series
MFG #FRS-R-200
Werner Part #21964
UPC051712508483
Product Description
Bussmann Fusetron Renewable Fuse, Current Limiting Time Delay, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 200 A, 600 V AC/300 V DC, 200/20 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.61 in Dia x 9.63 in L Body Size
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size1.61 in Dia x 9.63 in L
Body TypeCartridge
ClassRK5
Country of OriginMX
ElementDual
GTIN00051712508483
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200/20 kAIC
ManufacturerEaton
MaterialFiberglass
Mounting TypeHolder
Rejection/Non-RejectionRejection
Response Time10 s at 500%
SeriesFRS-R
Terminal TypeBlade End
Type / StyleCurrent Limiting Renewable
Voltage Rating600 V AC/300 V DC
Documents
Applications
Industrial Facilities and Factories, Safety and Security Systems, Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications
Features
- Provides motor overload, ground fault and short circuit protection
- When used in circuits subject to surge currents such as those caused by motors, transformers and other inductive components, these fuses can be sized close to full load amps to give maximum overcurrent protection
- The time delay feature makes it possible to use fuse amp ratings which are much smaller than those of non-time delay fuses
- Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
- Provides a good degree of short circuit protection (greater current limitation) to help protect downstream components from high fault currents
- Gives motor running back-up protection to motors without extra costs
- Helps protect motors against burnout from overloads and 1 ph when sized properly
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
Specifications
Standard/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|UL 248-12 File No. E4273 Guide JDDZ|CSA File No. 53787 C22.2 No. 248.12 Class 1422-02
