Bussmann Series FNQ-R-6

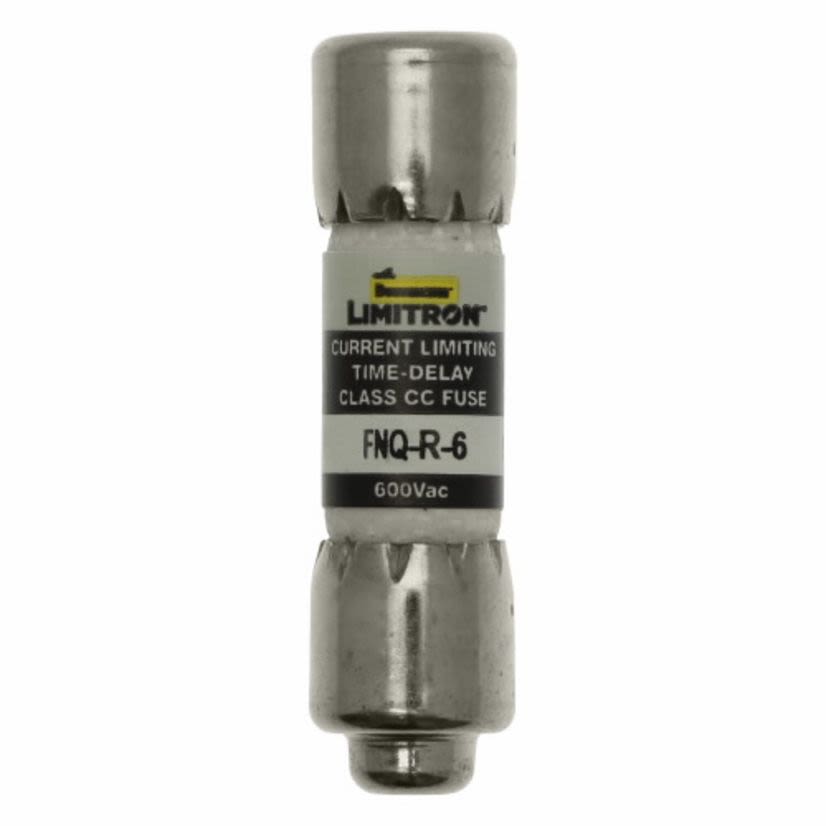

Bussmann CC-Tron FNQ-R-6 Current Limiting Time Delay Fuse, 6 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann Series FNQ-R-6
Bussmann CC-Tron FNQ-R-6 Current Limiting Time Delay Fuse, 6 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical BodyIn Stock: 199more info
|
BrandBussmann Series
MFG #FNQ-R-6
Werner Part #21877
UPC051712497008
In Stock: 199more info
|
BrandBussmann Series
MFG #FNQ-R-6
Werner Part #21877
UPC051712497008
Product Description
Bussmann CC-Tron Fuse, Current Limiting Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 6 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size13/32 in Dia x 1-1/2 in L
Body TypeCylindrical
ClassCC
Country of OriginMX
ElementDual
GTIN00051712497008
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kAIC
ManufacturerEaton
MaterialMelamine Tube
Mounting TypeHolder
Package Height1.5 in
Package Length1.5 in
Package TypeEACH
Package Weight0.15 lb
Package Width0.41 in
Rejection/Non-RejectionRejection
Response Time12 s at 200%
SeriesFNQ-R
Terminal TypeFerrule End
Type / StyleCurrent Limiting, High Inrush Time Delay
Voltage Rating600 V
Applications
Industrial Facilities and Factories, Safety and Security Systems, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders Applications
Features
- Time delay compatible with inrush characteristic of small control transformers
- Current limitation at class CC levels provides maximum component short circuit current protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- Nickel plated brass end caps
Specifications
Standard/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 248-4|Guide JDDZ|UL File No. E4273|CSA Class 1422-01|CSA File No. 53787-HRC-MISC|CE Certified
