Cutler-Hammer Series BR345

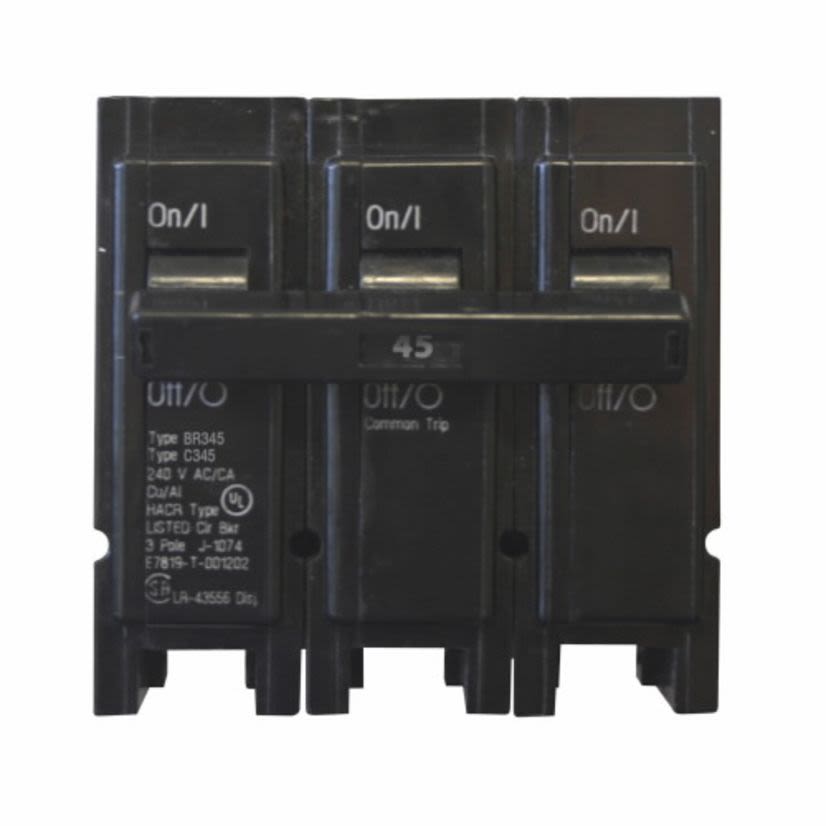

EATON BR345 Type BR Circuit Breaker, 240 V AC, 45 A, 10 kA Interrupt, 3 Poles
Cutler-Hammer Series BR345
EATON BR345 Type BR Circuit Breaker, 240 V AC, 45 A, 10 kA Interrupt, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #BR345
Werner Part #562614
UPC786676000116
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #BR345
Werner Part #562614
UPC786676000116
Product Description
EATON Circuit Breaker, Type BR, 240 V AC, 45 A, 60 Hz, 10 kA Interrupt, 3 Pole, 3 ph, Handle Actuator, Box Lug/Clamp, 14 to 4 AWG Wire, Plug-On Mount, 40 deg C, 3 in L x 3 in W x 2-3/4 in H, Thermoset
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeHandle
Connection TypeBox Lug/Clamp
Country of OriginDO
Dimensions3 in L x 3 in W x 2-3/4 in H
Frequency Rating60 Hz
Interrupt Rating10 kA
ManufacturerEaton
MaterialThermoset
Mounting TypePlug-On
Number of Poles3
Package Height2.75 in
Package Length3 in
Package TypeEACH
Package Weight0.94 lb
Package Width3 in
Phase3
Size of Wire14 to 8 AWG
Temperature Rating40 deg C
Trip TypeTrip-to-Center
TypeType BR
Type / StyleType BR
Voltage240 VAC
Applications
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Circuit Protection and Type BR Load Center
Warranty
10 years Limited
Features
- All are type IC (interchangeable) devices, several ratings are SWD and HARC approved
- Each pole of the circuit breaker will provide inverse time delay overload and instantaneous short circuit protection by means of both thermal and magnetic sensors
- The circuit breaker calibration shall not be affected by environmental changes in relative humidity
- All circuit breakers shall be operated by a toggle type handle and multipole circuit breakers shall have an internal common trip mechanism
- Contacts shall be of non-welding silver alloy
- All circuit breakers shall have the trip rating inscribed on the handle on each circuit breaker pole
- Circuit breakers shall be completely enclosed in a molded case of thermoset material
- All terminals shall be listed for use with copper/aluminum conductors
- Terminals shall be of the box lug or clamp type design
- The terminals shall meet UL 486B requirements and shall be suitable for use with either 60 or 75 deg C wire
