EATON BR20W

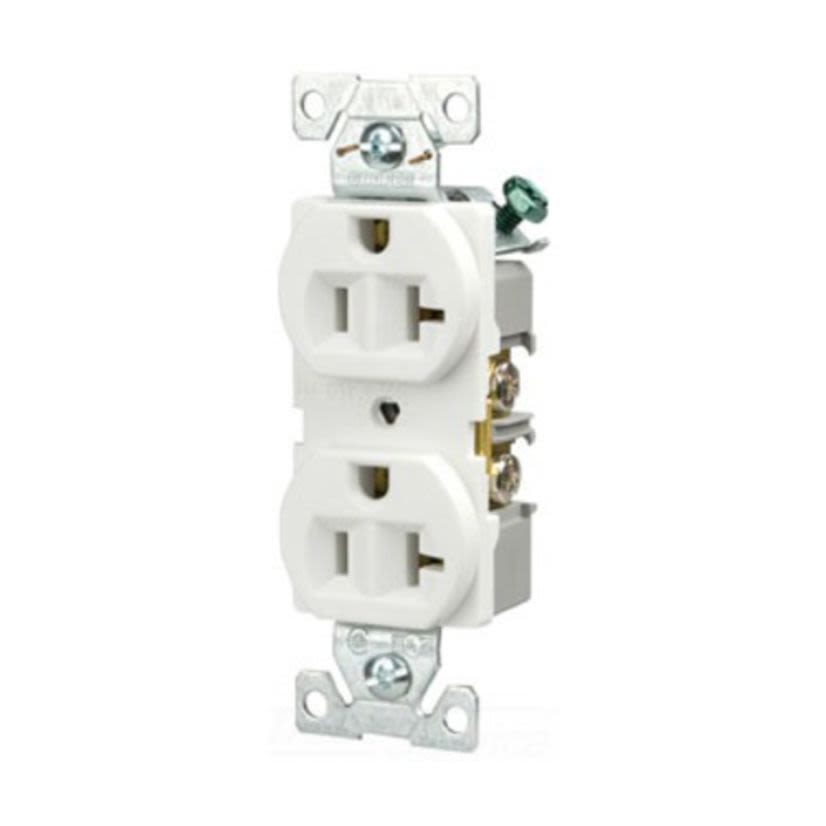

EATON Arrow Hart BR20W Auto Grounding Duplex Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
EATON BR20W
EATON Arrow Hart BR20W Auto Grounding Duplex Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandEATON
MFG #BR20W
Werner Part #395847
UPC032664750724
Non-stock product. Available to order - lead time may vary.
BrandEATON
MFG #BR20W
Werner Part #395847
UPC032664750724
Product Description
EATON Arrow Hart Straight Blade Receptacle, Auto Grounding Duplex, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -20 to 70 deg C, Back/Side Wire Terminal, Nylon/PVC, White, 4.19 in H x 0.82 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorWhite
Country of OriginUS
Dimensions4.19 in H x 0.82 in D
GradeCommercial
ManufacturerEaton
MaterialNylon/PVC
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-20 to 70 deg C
Terminal TypeBack/Side Wire
TypeAuto Grounding Duplex
Type / StyleAuto Grounding Duplex
Voltage Rating125 V AC
Documents
Applications
Indoor Applications
Features
- Galvanized steel wrap around yoke mounting strap for superior assembly security, extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw catch feature on device speeds mounting of wallplates
- Tamper resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 and 20 A, 125 VAC receptacles installed in dwelling units must be tamper resistant
- Flush mounting
- Indoor environmental conditions
- Nylon face, PVC base
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cULus/UL Listed|CSA Certified|UL94-V-2 Flammability Rating|NOM Certified
