Cutler-Hammer Series BAB1020D

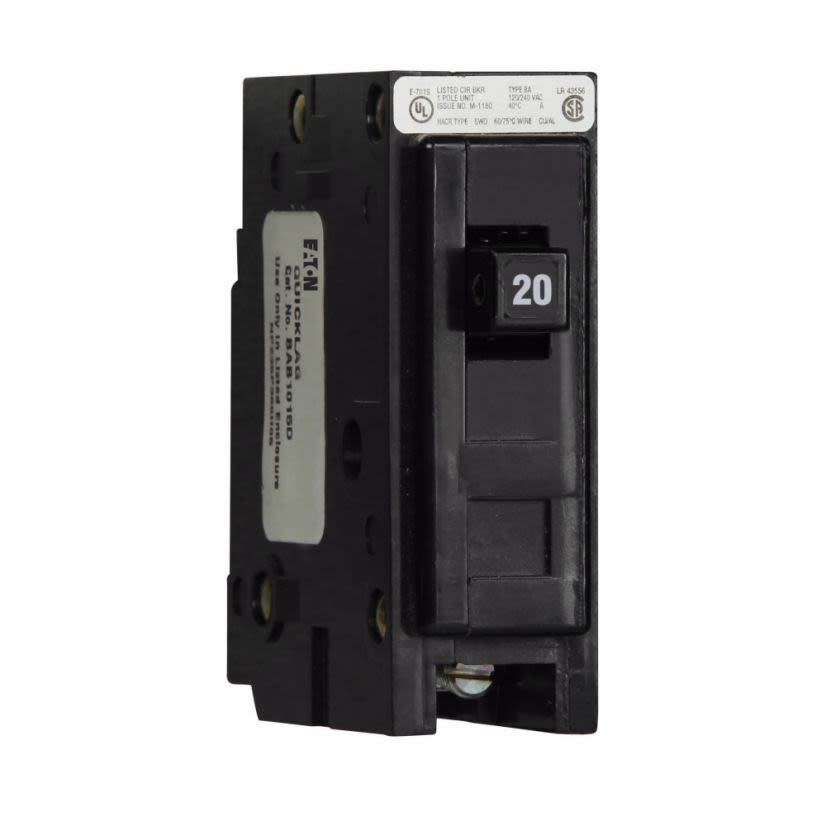

EATON Cutler-Hammer Series QuickLag® BAB1020D Type BAB High Intensity Discharge Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Non-Interchangeable Thermal Magnetic Trip
EATON Cutler-Hammer Series QuickLag® BAB1020D Type BAB High Intensity Discharge Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Non-Interchangeable Thermal Magnetic Trip

Cutler-Hammer Series BAB1020D

EATON Cutler-Hammer Series QuickLag® BAB1020D Type BAB High Intensity Discharge Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Non-Interchangeable Thermal Magnetic Trip
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #BAB1020D

Werner Part #582599

UPC786679153130

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #BAB1020D

Werner Part #582599

UPC786679153130

Product Description

EATON Cutler-Hammer Series QuickLag® Miniature Circuit Breaker, Type BAB High Intensity Discharge, 120/240 VAC, 20 A, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 Phase, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3.7 in L x 1.2 in W x 4.7 in H
Attributes
Actuator TypeHandle
Country of OriginDominican Republic
Dimensions17.6 in H x 9.4 in W x 5 in D
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
Horsepower60 hp
Interrupt Rating10 kA
ManufacturerEaton Corp
Mounting TypeSurface
Number of Poles3
Number of Wires3
Phase3
SeriesTHN
Short Circuit Current Rating200 kA
Size of Wire14 to 4 AWG
Temperature Rating60/75 deg C
Trip TypeNon-Interchangeable Thermal Magnetic
TypeHeavy Duty Non-Fusible
Type / StyleType BAB High Intensity Discharge
Voltage120/240 VAC
