Cutler-Hammer Series AN56NN0AB

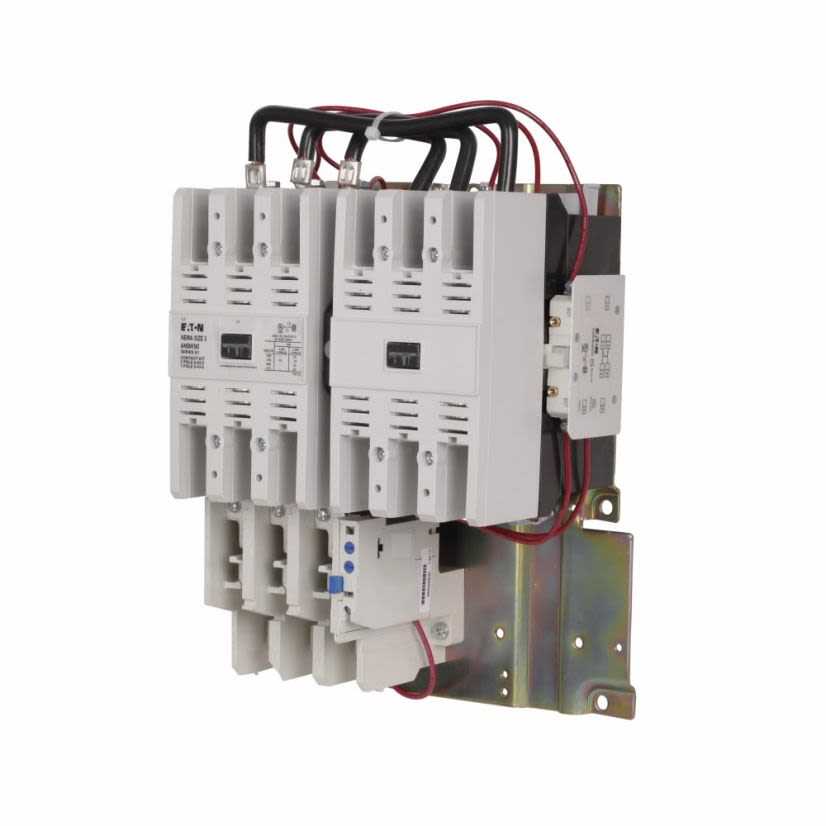

EATON AN56NN0AB Freedom Type AN56 Horizontal Open NEMA Starter, 110 to 120 VAC V Coil, Reversing Action, 3 Poles, NEMA 4 Enclosure
Cutler-Hammer Series AN56NN0AB
EATON AN56NN0AB Freedom Type AN56 Horizontal Open NEMA Starter, 110 to 120 VAC V Coil, Reversing Action, 3 Poles, NEMA 4 EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #AN56NN0AB
Werner Part #2369140
UPC782113604121
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #AN56NN0AB
Werner Part #2369140
UPC782113604121
Product Description
EATON NEMA Starter, Type AN56 Horizontal Open, Series: Freedom, 600 V AC, 135 A, 50/60 Hz Frequency, 100 hp Motor, 110 to 120 VAC Coil, 3 Pole, Automatic/Manual Reset, Line/Load Connection, Reversing Action, C306 Bimetal Overload Relay, NEMA 4 Enclosure, 3000000 Cycles Operating Cycles, 6.75 in L x 6.63 in W x 4.63 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
ActionReversing
Coil Voltage110 to 120 V AC
Connection TypeLine/Load
Country of OriginDO
Dimensions6.75 in L x 6.63 in W x 4.63 in H
Enclosure TypeNEMA 4
Frequency Rating50/60 Hz
ManufacturerEaton
Number of Poles3
Package TypeEACH
SeriesFreedom
Type / StyleType AN56 Horizontal Open
Applications
Motor and Power Control Equipment Applications
Included
Combination Recess Hex Head Machine Screw
Warranty
1 year
Features
- Screw type power terminals have captive, backed out self-lifting pressure plates with screws result in reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
- 40 hp at 208 VAC, 50 hp at 240 VAC, 100 hp at 480 VAC
