Cutler-Hammer Series AN19AN0A5E020

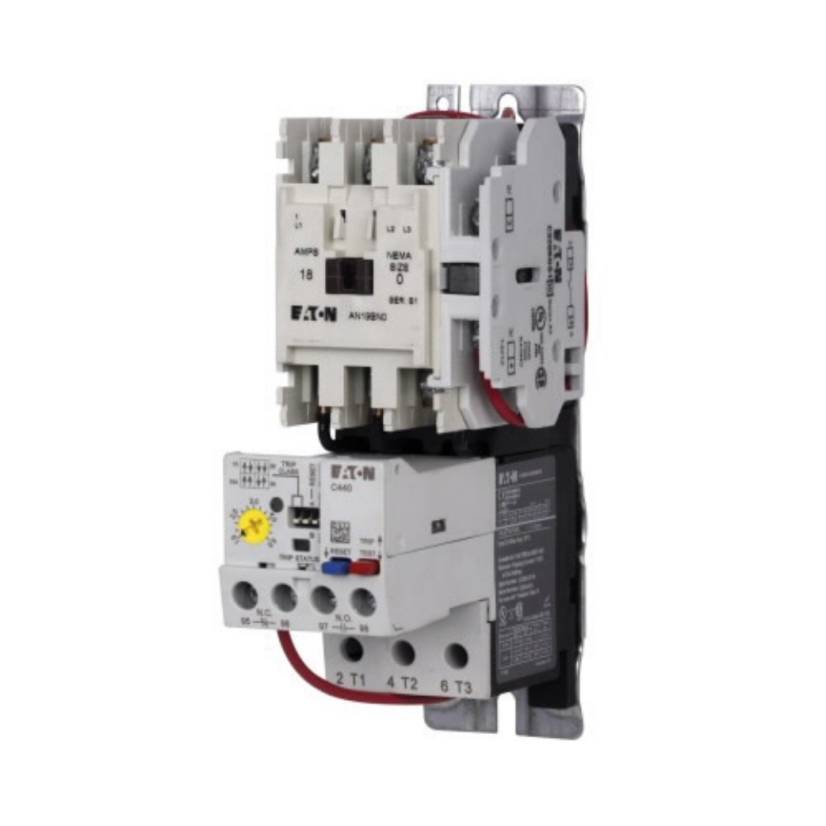

EATON AN19AN0A5E020 Freedom Full Voltage Non-Reversing NEMA Starter, 110/120 VAC V Coil, 3 Poles, Open Enclosure
Cutler-Hammer Series AN19AN0A5E020
EATON AN19AN0A5E020 Freedom Full Voltage Non-Reversing NEMA Starter, 110/120 VAC V Coil, 3 Poles, Open EnclosureNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON NEMA Starter, Full Voltage Non-Reversing, Series: Freedom, 600 V AC, 9 A, 50/60 Hz Frequency, 2 hp Motor, 110/120 VAC Coil, 3 Pole, Auto/Manual Reset, Line/Load Lug Connection, C440 Electronic Overload Relay, 4 to 20 A Full Load, Open Enclosure, 4.9 x 1.97 x 6.6 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ActionNon-Reversing
Coil Voltage110/120 V AC
Connection TypeLine/Load Lug
Country of OriginDO
Dimensions4.9 x 1.97 x 6.6 in
Enclosure TypeOpen
Frequency Rating50/60 Hz
Full Load Current4 to 20 A
ManufacturerEaton
Number of Poles3
Package Height6 IN
Package Length8 in
Package TypeEACH
Package Weight1.75 lb
Package Width4 in
SeriesFreedom
Type / StyleFull Voltage Open
Applications
Electrical Assemblies, Panels and EOEMs Applications
Warranty
1 year
Features
- Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
- Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
- 1/3 hp at 115 VAC, 1 hp at 230 VAC, 1-1/2 hp at 208/240 VAC, 2 hp at 480 VAC horsepower rating
