Cutler-Hammer Series A201K4CA

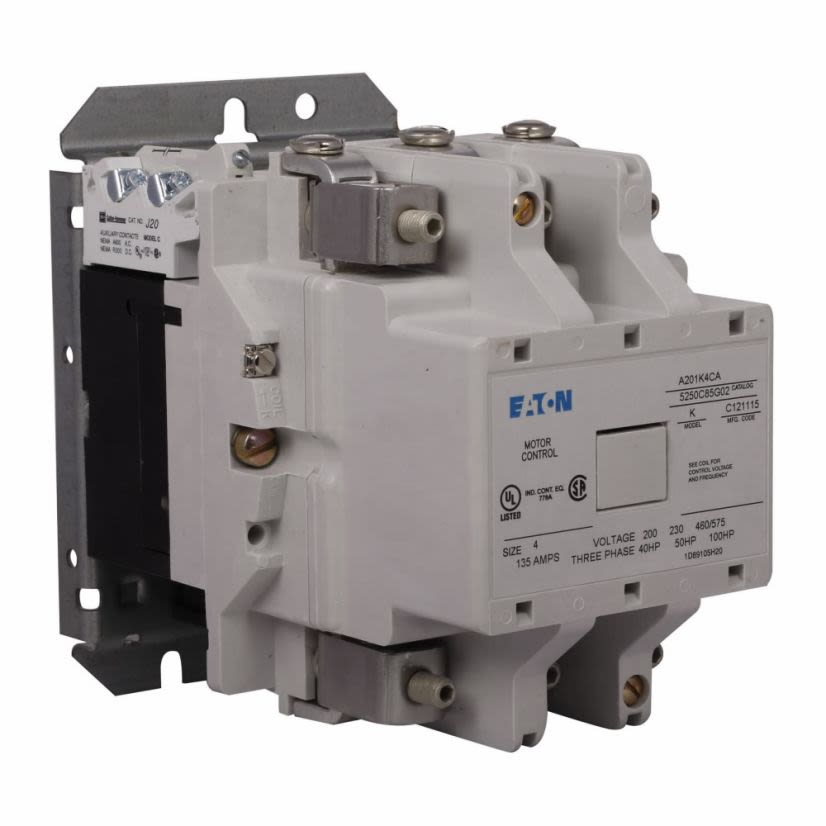

EATON A201K4CA Full Voltage Non-Reversing NEMA Contactor, 110/120 V AC V Coil, 135 A, 1NO Contact, 3 Poles
Cutler-Hammer Series A201K4CA
EATON A201K4CA Full Voltage Non-Reversing NEMA Contactor, 110/120 V AC V Coil, 135 A, 1NO Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #A201K4CA
Werner Part #3822310
UPC786678231723
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #A201K4CA
Werner Part #3822310
UPC786678231723
Product Description
EATON NEMA Contactor, Full Voltage Non-Reversing, Series: A200, 110/120 V AC Coil, 135 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, Front Connection, SZ 4 Size, Open Enclosure, Surface Mounting, 6.75 in L x 6.63 in W x 4.63 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Voltage110/120 V AC
Connection TypeFront
Contact Configuration1NO
Contact FormNon-Reversing
Country of OriginDO
Dimensions6.75 in L x 6.63 in W x 4.63 in H
Enclosure TypeOpen
Frequency Rating50/60 Hz
Full Load CurrentMax: 135 A
ManufacturerEaton
Maximum Load Current135 A
Mounting TypeSurface
Number of Auxiliary Contacts1
Number of Poles3
Package TypeEACH
SeriesA200
SizeSZ 4
Type / StyleFront Connected Full Voltage Magnetic
Documents
Applications
Electrical Assemblies, Panels and EOEMs Applications
Warranty
1 year
Features
- Electronic coil controller allows contactors to reduce power consumption and generate less heat, resulting in lower cooling requirements, the ability to mount more contactors/starters per cabinet and an extended life on pilot devices that carry control signals
- AC and DC devices with the same dimensions achieved with an electronically controlled coil system allow for space savings and reduced engineering design time
- Integrated suppressors in DC controlled contactors offers reductions in total logistics and inventory costs by limiting the number of products ordered and stocked
- Wiring is not required, therefore increasing installation and maintenance efficiency
- Expanded range of DC coil control voltages, allows reliable operation through fluctuations in control voltages
- Twin terminals with separate sockets in contactors up to 400 A offer installation and application flexibility when using different size wires
- The improved integrity of the connections reduces cabling faults
- 40 hp at 208 VAC, 50 hp at 240 VAC 1 ph, 100 hp at 480 VAC, 100 hp at 600 VAC 3 ph power rating
