Cutler-Hammer Series 5SC750

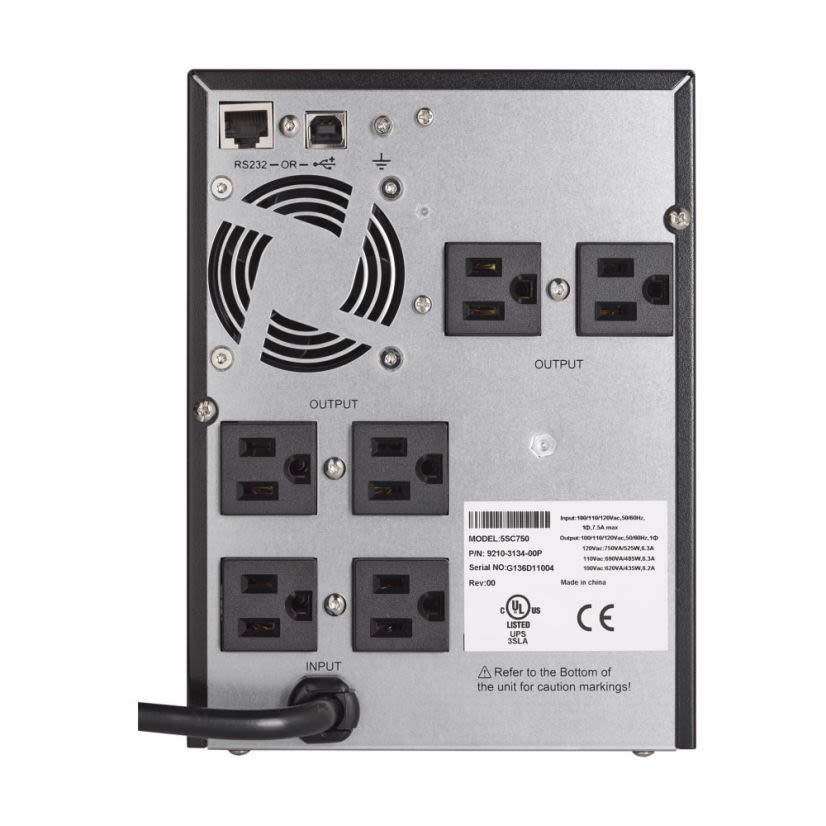

EATON 5SC750 5SC Uninterruptible Power Supply, 96 to 144 V AC Input, 120 VAC Output, 525 W Power Rating, 5/13 min Backup, 6 Outlets
Cutler-Hammer Series 5SC750
EATON 5SC750 5SC Uninterruptible Power Supply, 96 to 144 V AC Input, 120 VAC Output, 525 W Power Rating, 5/13 min Backup, 6 OutletsNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5SC750
Werner Part #4019603
UPC743172045096
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5SC750
Werner Part #4019603
UPC743172045096
Product Description
EATON Uninterruptible Power Supply, Series: 5SC, 96 to 144 V AC Input, 120 VAC Output, 525 W, 45 to 55/55 to 65 Hz, 5/13 min Backup, 1 ph, 6 Outlets, 5-15P Plug Configuration, (6) 5-15R Receptacle Configuration, 6 ft Cord, LCD, Tower Mount, LCD Display Interface, Valve Regulated Lead Acid Battery, Environmental Conditions: 32 to 104 deg F Operating Temperature, 0 to 95% Relative Humidity, 13.4 in L x 5.9 in W x 8.2 in H
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Backup Time5/13 min
BatteryValve Regulated Lead Acid
Cord Length6 ft
Country of OriginPH
Dimensions13.4 in L x 5.9 in W x 8.2 in H
Display TypeLCD
Environmental Conditions32 to 104 deg F Operating Temperature, 0 to 95% Relative Humidity
Frequency Rating45 to 55/55 to 65 Hz
Input Voltage96 to 144 V AC
InterfaceLCD Display
LengthCord: 6 ft
ManufacturerEaton
Mounting TypeTower
NEMA Plug Configuration5-15P
NEMA Receptacle Configuration(6) 5-15R
Number of Outlets6
Output Voltage120 V AC
Phase1
Power Rating525 W
Series5SC
Documents
Applications
Backup Power and Electronic Power Conversion Applications
Warranty
3 years
Features
- Increased battery life offers ABM technology that increases battery service life by 50%
- ABM uses an advanced, 3-stage charging technique and closely monitors battery health to provide advanced notice when batteries need replacement
- More power 9130 allows you to connect more devices and leave room for expanding IT systems by providing up to 28% more wattage compared to traditional UPS
- Load segmentation grouped outlets with remote control capability enable IT managers to cycle or shed loads through a webcard interface or based upon a pre-programmed schedule
- Intelligent Power Manager (IPM) IPM software provides network power management, ensuring data and system integrity
- Contains IPM, you can have access to easy, versatile, remote monitoring and management of multiple devices
- The bright, intuitive LCD user interface simplifies UPS monitoring and management
- The user friendly menu allows you to view all critical UPS information in a single view
- The 9130 can help cut energy usage costs with >95% efficiency rating in high efficiency mode and can provide more real output power per each dollar spent with a 0.9 power factor
- Ensure system uptime and data integrity by remotely monitoring, managing and controlling devices on your network from a web based interface
- Integrate seamlessly with several virtualization platforms, such as VMware vRealize operations manager and vCenter dashboard, Citrix XenServer, Microsoft SCOM, red Hat and other Xen open source platforms
- Automate load shedding, power capping and failover to a disaster site
- Achieve the same amount of runtime with fewer batteries using load shedding
Specifications
- Backup Time: 5/13 min
