Cutler-Hammer Series 5SC1000

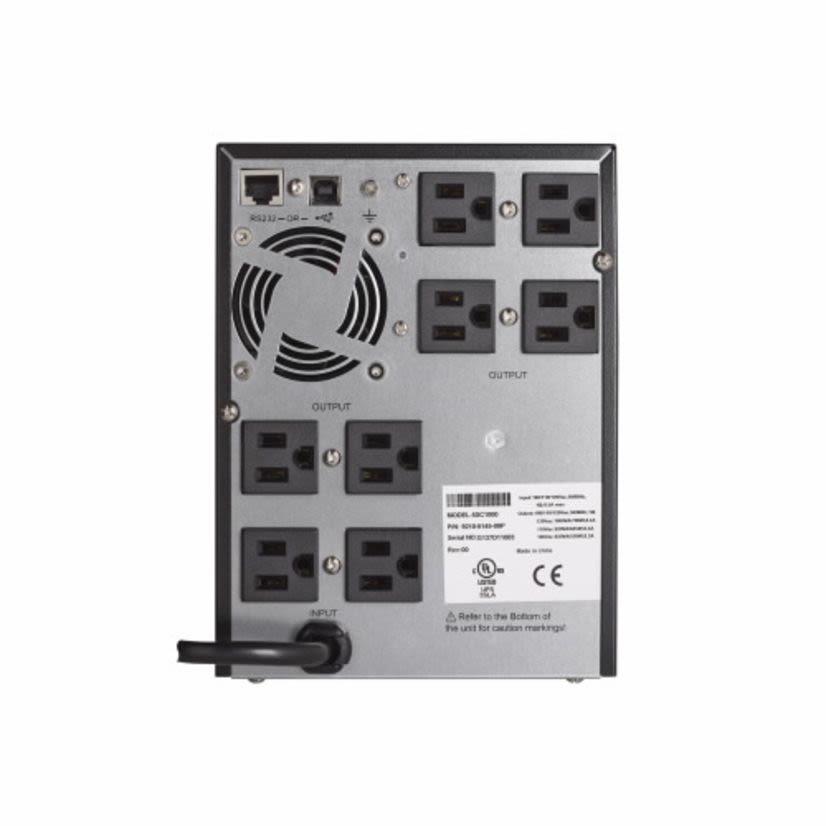

EATON 5SC1000 Uninterruptible Power Supply, 96 to 144 V AC Input, 100/110/120 VAC Output, 700 W Power Rating, 8 Outlets
Cutler-Hammer Series 5SC1000
EATON 5SC1000 Uninterruptible Power Supply, 96 to 144 V AC Input, 100/110/120 VAC Output, 700 W Power Rating, 8 OutletsNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5SC1000
Werner Part #4075924
UPC743172045102
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5SC1000
Werner Part #4075924
UPC743172045102
Product Description
EATON Uninterruptible Power Supply, Series: 5SC, 96 to 144 V AC Input, 100/110/120 VAC Output, 700 W Power, 45 to 55, 55 to 65 Hz Frequency, 1 Phase, 8 Outlets, NEMA 5-15P Plug Configuration, NEMA 5-15R Receptacle Configuration, 6 ft Cord Length, LCD Display, Tower Mounting, Valve Regulated Lead Acid Battery, Environmental Conditions: 32 to 104 deg F Temperature, 0 to 95% Relative Humidity, 4 in L x 17-3/4 in W x 2-1/4 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
BatteryValve Regulated Lead Acid
Cord Length6 ft
Country of OriginPH
Dimensions4 in L x 17-3/4 in W x 2-1/4 in H
Display TypeLCD
Environmental Conditions32 to 104 deg F Temperature, 0 to 95% Relative Humidity
Frequency Rating45 to 55, 55 to 65 Hz
Input Voltage96 to 144 V AC
LengthCord: 6 ft
ManufacturerEaton
Mounting TypeTower
NEMA Plug ConfigurationNEMA 5-15P
NEMA Receptacle ConfigurationNEMA 5-15R
Number of Outlets8
Output Voltage100/110/120 V AC
Package Height12.13 in
Package Length13.4 IN
Package TypeEACH
Package Weight27.12 lb
Package Width5.9 in
Phase1
Power Rating700 W
Series5SC
Applications
For backup power and electronic power conversion, small business servers, Network-Attached Storage (NAS), network equipment, ATMs, ticket machines and kiosks
Features
- Line interactive topology
- Free standing model construction type
- 1000 VA power rating
- Upto 94% efficiency
- IEEE ANSI C62.41 Cat B2 surge protection
- NEMA 5-15P input connection
- 96 to 144 VAC nominal voltage
- 45 to 55 Hz (50 Hz system), 55 to 65 Hz (60 Hz system) input frequency range
- 8 ETIM number of output fixed connection
- ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) battery management
- Sealed, lead acid, maintenance free battery
- RS-232 (RJ45) ports, USB port as standard (HID), 6 ft RS-232 and USB cables communication ports
- <40 dB at 1 m noise level
Warranty
3 years
