Cutler-Hammer Series 5P550R

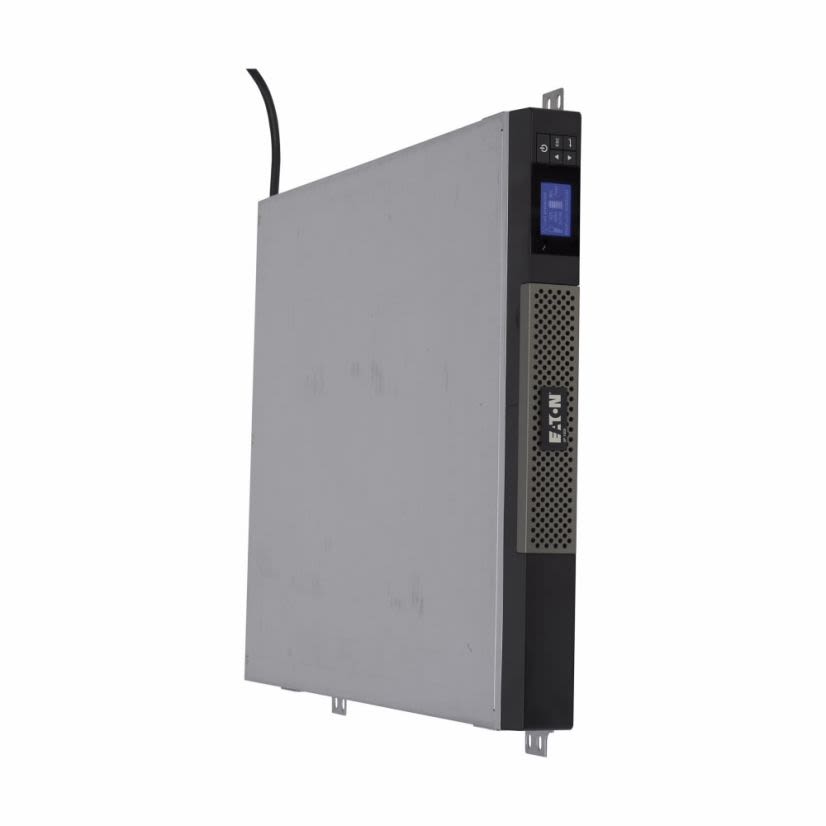

EATON 5P550R 5P Series Uninterruptible Power Supply, 89 to 151 V AC Input, 120 VAC Output, 420 W Power Rating, 5 Outlets
Cutler-Hammer Series 5P550R
EATON 5P550R 5P Series Uninterruptible Power Supply, 89 to 151 V AC Input, 120 VAC Output, 420 W Power Rating, 5 OutletsNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5P550R
Werner Part #4068031
UPC743172043030
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5P550R
Werner Part #4068031
UPC743172043030
Product Description
EATON Uninterruptible Power Supply, Series: 5P Series, 89 to 151 V AC Input, 120 VAC Output, 420 W, 40 to 60 Hz, 1 ph, 5 Outlets, 5-15P Plug Configuration, (5) 5-15R Receptacle Configuration, 6 ft Cord, LCD, Rack Mount, LCD Graphical Display Interface, Valve Regulated Lead Acid Battery, Environmental Conditions: -15 to 40 deg F Storage Temperature, 0 to 90% Non-Condensing Relative Humidity, <45 dB Audible Noise, 25.5 in L x 17.4 in W x 3.4 in H
Attributes
Documents
Applications
Features
Included
Attributes
BatteryValve Regulated Lead Acid
Cord Length6 ft
Country of OriginCN
Dimensions25.5 in L x 17.4 in W x 3.4 in H
Display TypeLCD
Environmental Conditions-15 to 40 deg F Storage Temperature, 0 to 90% Non-Condensing Relative Humidity, <45 dB Audible Noise
Frequency Rating40 to 60 Hz
Input Voltage89 to 151 V AC
InterfaceLCD Graphical Display
LengthCord: 6 ft
ManufacturerEaton
Mounting TypeRack
NEMA Plug Configuration5-15P
NEMA Receptacle Configuration(5) 5-15R
Number of Outlets5
Output Voltage120 V AC
Package Height6.18 in
Package Length14.3 IN
Package TypeEACH
Package Weight23.8 lb
Package Width17.4 in
Phase1
Power Rating420 W
Series5P Series
Documents
Applications
Backup Power and Electronic Power Conversion Applications
Features
- Line interactive topology
- Rack mount/wall mount configuration
- Black and silver color
- 420 W power rating
- Full system self-test at power up diagnostics
- Upto 96% efficiency
- 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 to 70 Hz in low sensitivity mode frequency range
- 102 to 132 VAC on utility voltage regulation
- -10%, +6% of nominal on battery voltage regulation
- (2) 5-15R outlets group 1, (1) 5-15R outlets group 2
- ABM technology and temperature compensated charging method (user selectable), automatic battery test and deep discharge protection
- RS-232 (RJ45) ports, USB port as standard (HID), 6 ft RS-232 and USB cables communication ports
- 1-slot communications card slots
- 120 VAC nominal voltage
- Sealed, maintenance free lead acid battery
- Allows start of UPS without utility power
- Load protected, battery and fault LEDs
- Line 72, battery 344 heat dissipation (BTU)
- 0 to 35 deg C operating temperature
- Upto 10000 ft without de-rating altitude
Included
Mounting Ears, 5P UPS, User Manual CD, Intelligent Power Software Suite CD, Quick Start Guide, USB Cable and RS-232 Serial Cable
