Cutler-Hammer Series 5P3000

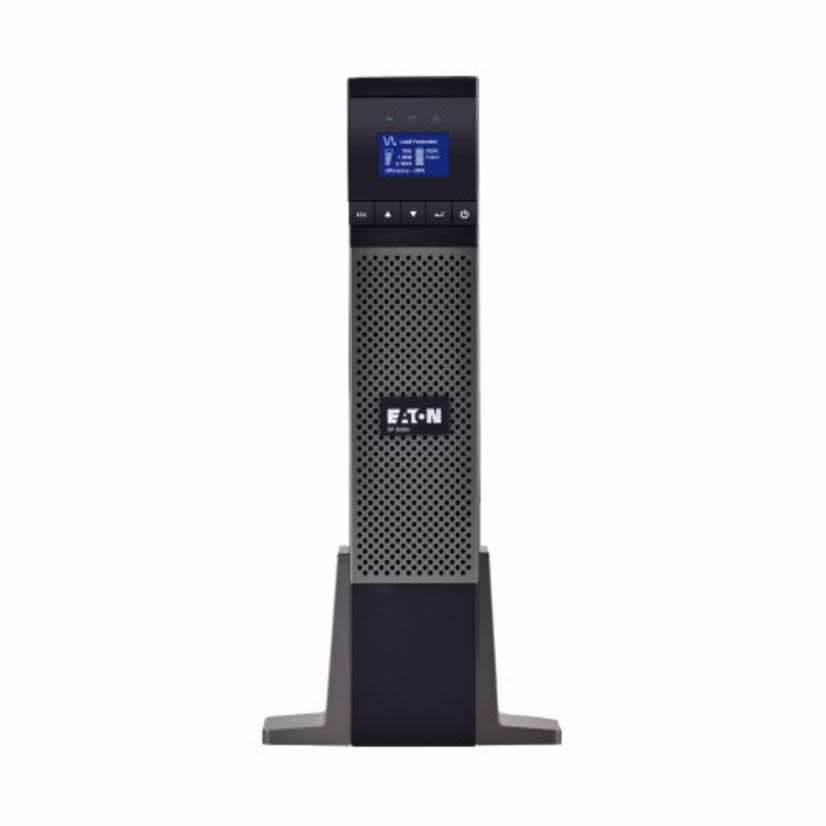

EATON 5P3000 5P Series Uninterruptible Power Supply, 89 to 151 V AC Input, 102/132 VAC Output, 2700 W Power Rating, 4/10 min Backup, 7 Outlets
Cutler-Hammer Series 5P3000
EATON 5P3000 5P Series Uninterruptible Power Supply, 89 to 151 V AC Input, 102/132 VAC Output, 2700 W Power Rating, 4/10 min Backup, 7 OutletsNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5P3000
Werner Part #4088683
UPC743172039644
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5P3000
Werner Part #4088683
UPC743172039644
Product Description
EATON Uninterruptible Power Supply, Series: 5P Series, 89 to 151 V AC Input, 102/132 VAC Output, 2700 W, 40 to 60 Hz, 4/10 min Backup, 7 Outlets, L5-30P Plug Configuration, (6) 5-20R/(1) L5-30R Receptacle Configuration, 10 ft Cord, LCD/Graphical, Tower Mount, LCD Graphical Display Interface, Valve Regulated Lead Acid Battery, Environmental Conditions: 0 to 40 deg C Operating Temperature, 20 to 95% Relative Humidity, 25.5 in L x 17.4 in W x 3.4 in H
Attributes
Documents
Applications
Features
Included
Specifications
Warranty
Attributes
Backup Time4/10 min
BatteryValve Regulated Lead Acid
Cord Length10 ft
Country of OriginCN
Dimensions25.5 in L x 17.4 in W x 3.4 in H
Display TypeLCD/Graphical
Environmental Conditions0 to 40 deg C Operating Temperature, 20 to 95% Relative Humidity
Frequency Rating40 to 60 Hz
Input Voltage89 to 151 V AC
InterfaceLCD Graphical Display
LengthCord: 10 ft
ManufacturerEaton
Mounting TypeTower
NEMA Plug ConfigurationL5-30P
NEMA Receptacle Configuration(6) 5-20R/(1) L5-30R
Number of Outlets7
Output Voltage102/132 V AC
Package TypeEACH
Power Rating2700 W
Series5P Series
Documents
Applications
Backup Power and Electronic Power Conversion Applications
Features
- The Eaton 5PX provides industry leading efficiency of up to 99%
- The 5PX meters energy consumption right down to the outlet segments
- No other UPS in the industry offers this capability
- UPS management by integrating Eaton free intelligent Power software suite, you can monitor and manage the power devices on your network
- Eaton next generation LCD offers a graphical interface which provides all critical UPS information in a single screen view
- The user friendly menu allows you to view information and control settings at the push of a button
- The 5PX protects more devices by providing 28% more wattage compared to traditional UPS's
- Eaton exclusive ABM technology increases battery service life by 50% with easy front panel battery replacement to extend UPS service life
- ABM uses an advanced, 3-stage charging technique and closely monitors battery health to provide advanced notice when batteries need replacement
- Compatibility with Vmware and Microsoft virtualization platforms
- Seamless integration with Vmware vCenter dashboard
- The ability to trigger vMotion and live Migration and move virtual machines during a power failure
- Graceful shutdown of computers and virtual machines/servers during an extended power outage
- 5PX provides advanced power conditioning and unparalleled battery backup for network closets and small data centers
- ABM technology and temperature compensated charging method (user selectable), automatic battery test and deep discharge protection, automatic recognition of Extended Battery Modules (EBMs)
Included
Tower Pedestals, Quick Start Guide and Phillips Head Screw Driver
Specifications
- Backup Time: 4/10 min
Warranty
3 years
